  9. Condensate Pump, 1/10 hp, 2 gal, 115V AC
Hartell Condensate Pump, 1/10 hp, 2 gal, 115V AC AL2-X115 - main

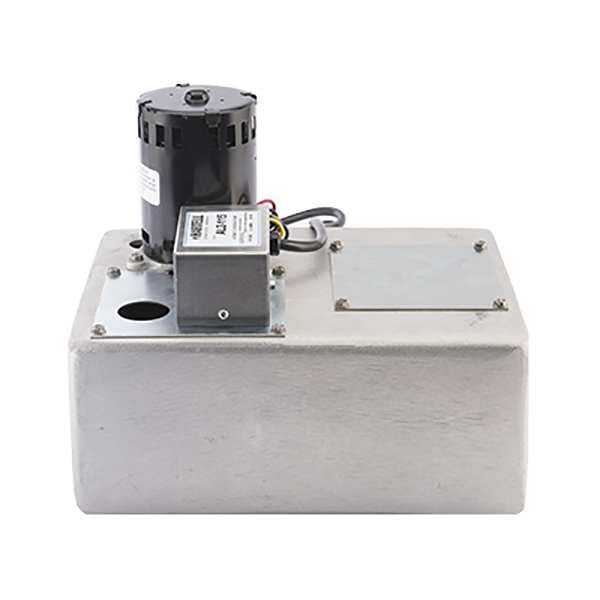

Condensate Pump, 1/10 hp, 2 gal, 115V AC

  • Mfr # AL2-X115

  • Zoro # G803530206

product price: $826.99
/ea
Free Shipping & Returns

Key Features

Float Material
Polypropylene
Includes
Motor Thermal Protection
Cord Length
6 ft
Application
Condensate Removal
Amps
3.1 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AL2-X115
Zoro #
G803530206
UPC #
856472008255
Country of Origin
United States

Dimensions

Cord Length
6 ft
Manufacturer Warranty Length
1 yr
Compatible Discharge Pipe Size
3/8 in
Overall Width
9 in
Compatible Intake Pipe Size
3/8 in
Overall Length
12 in
Overall Height
10 in
For Inlet Pipe Diameter
3/8 in
For Discharge Pipe Diameter
3/8 in

Details

Item
Condensate Removal Pump
Float Material
Polypropylene
Includes
Motor Thermal Protection
Application
Condensate Removal
Amps
3.1 A
Tank Material
Aluminum
Pump Type
Standard
Maximum Flow Rate @ 15 Feet of Head
1.66 gpm
Intake Connection Style
Open
Minimum Ambient Temperature
40 Degrees F
Electrical Connection Type
Plug-In
Maximum Flow Rate @ 5 Feet of Head
3.08 gpm
For Use With Potable Systems
No
Tank Capacity
2 gal
Series Family
AL2
Number of Intakes
1
Maximum Ambient Temperature
150 Degrees F
Series
AL2X
Wetted Material
Aluminum
Horsepower
1/8 hp
Maximum Flow Rate @ 10 Feet of Head
2.31 gpm
Plenum Rated
No
Pump Activation Type
Float Switch
Maximum Flow Rate @ 20 Feet of Head
0.85 gpm
Minimum Media Temperature
40 Degrees F
Frequency
60 Hz
Nameplate Voltage
115V AC
Maximum Media Temperature
150 Degrees F
Pump Housing Material
Aluminum
Discharge Connection Style
FNPT
Maximum Feet of Head
20 ft
Maximum Flow Rate @ 1 Feet of Head
3.33 gpm
Body Gasket Material
EPDM
Phase
Single
Installation
Floor Standing
Media Temperature - Minimum
40 Degrees F
Shut Off Level
18 ft
Discharge Standard
FNPT
Ambient Temperature - Maximum
150 Degrees F
Pump Casing Material
Aluminum
For Media Type
Clear Water
Ambient Temperature - Minimum
40 Degrees F
Number of Inlets
1
Priming
Manual
Full Load Current
3.1 A
Connectivity
Auxiliary Contacts
Includes Tubing
No Tubing Included
Tank Opacity
Solid
Media Temperature - Maximum
150 Degrees F
Feet of Head - Maximum
20 ft
Product Type
Condensate Removal Pump
For HVAC System Duct
Ducted
Power Source
Corded Electric
Inlet Standard
Open
Turn On Level
1.5 in
Includes Safety Switch
Safety Switch Included

Description

Condensate Removal Pump, Discharge Connection Style FNPT, Horsepower 1/8 hp, Includes Motor Thermal Protection, Intake Connection Style Open, Maximum Feet of Head 20 ft, Maximum Flow Rate @ 10 Feet of Head 2.31 gpm, Maximum Flow Rate @ 15 Feet of Head 1.66 gpm, Maximum Flow Rate @ 1 Foot of Head 3.33 gpm, Maximum Flow Rate @ 20 Feet of Head 0.85 gpm, Maximum Media Temperature 150 Degrees F, Nameplate Voltage 115V AC, Plenum Rated No, Pump Type Standard, Series AL2X, Series Family AL2

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
