  9. Condensate Pump, 1/20 HP, 115V, 1.6A, 128W
Shop All Condensate Pumps
Hartell

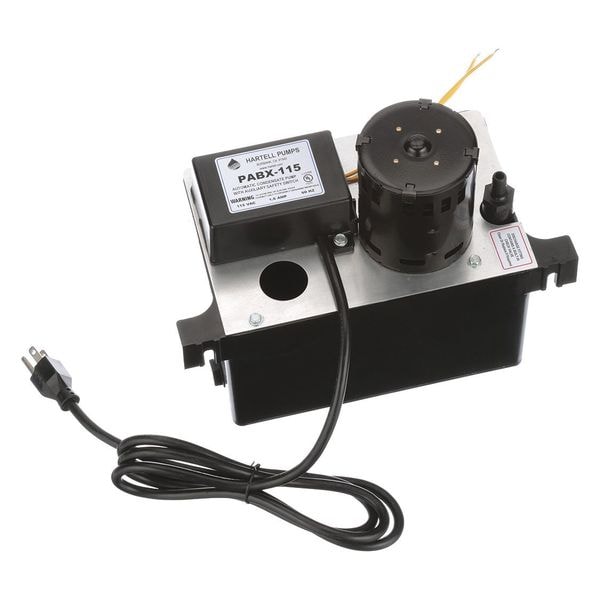

Condensate Pump, 1/20 HP, 115V, 1.6A, 128W

original price: $388.99
19% off
new price: $311.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Condensate Pumps - Type Condensate
  • Reservoir Size - Pumps Large
  • Voltage 115
  • HP - Pumps 1/20 hp
  • Voltage - Pumps 115V AC
See all product information

Product Information

Dimensions

Reservoir Size - Pumps Large
Discharge Size - Pumps 3/8 in I. D.
Cord Length 6 ft
Width 9 1/4 in
Length 6 in
Height 9 3/4 in
Overall Width 9.25 in
Overall Length 6 in
Overall Height 9.75 in
Compatible Discharge Pipe Size 3/8 in
Manufacturer Warranty Length 1 yr
Compatible Intake Pipe Size 3/4 in, 1 1/8 in, 1 3/8 in

Details

Item Condensate Removal Pump
Condensate Pumps - Type Condensate
Voltage 115
HP - Pumps 1/20 hp
Voltage - Pumps 115V AC
Reservoir Capacity - Pumps 1 gal
Max. Temp - Pumps 110 Degrees F
GPH of Water @ 15 Ft. of Head 54
Max. Temp. 110 Degrees F
GPH of Water @ 9 Ft. of Head 84
GPH of Water @ 20 Ft. of Head 68
GPH of Water @ 1 Ft. of Head 126
GPH of Water @ 5 Ft. of Head 4000
Shaft Material Aluminum
Amps 1.6 A
Watts 128 W
GPH of Water @ 12 Ft. of Head 135
Max. Head - Pumps 22 ft
Float Material Polypropylene
Max. Pressure 9 psi
Standards cULus
Pump Type Standard
Tank Material ABS Plastic
Body Gasket Material Aluminum
Number of Intakes 3
Plenum Rated No
Maximum Media Temperature 110 Degrees F
Electrical Connection Type Cord with Plug
Tank Capacity 1 gal
Pump Activation Type Float Switch
Horsepower 1/20 hp
Series Family PABX
Maximum Flow Rate @ 5 Feet of Head 2.1 gpm
Maximum Flow Rate @ 20 Feet of Head 1.1 gpm
For Use With Potable Systems No
Maximum Feet of Head 22 ft
Series PABX
Intake Connection Style Open
Maximum Flow Rate @ 50 Feet of Head [DELETE]
Discharge Connection Style Barbed
Maximum Flow Rate @ 10 Feet of Head 1.8 gpm
Maximum Flow Rate @ 15 Feet of Head 0.9 gpm
Nameplate Voltage 115V AC
Maximum Operating Pressure 9 psi
Maximum Ambient Temperature 110 Degrees F
Maximum Flow Rate @ 1 Feet of Head 2.3 gpm

Description

Condensate Removal Pump, Discharge Connection Style Barbed, Horsepower 1/20 hp, Intake Connection Style Open, Maximum Feet of Head 22 ft, Maximum Flow Rate @ 10 Feet of Head 1.8 gpm, Maximum Flow Rate @ 15 Feet of Head 0.9 gpm, Maximum Flow Rate @ 1 Foot of Head 2.3 gpm, Maximum Flow Rate @ 20 Feet of Head 1.1 gpm, Maximum Media Temperature 110 Degrees F, Nameplate Voltage 115V AC, Plenum Rated No, Pump Type Standard, Series PABX, Series Family PABX, Tank Capacity 1 gal

Documents & Resources

Restrictions

  • *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
