Shop HARTELL

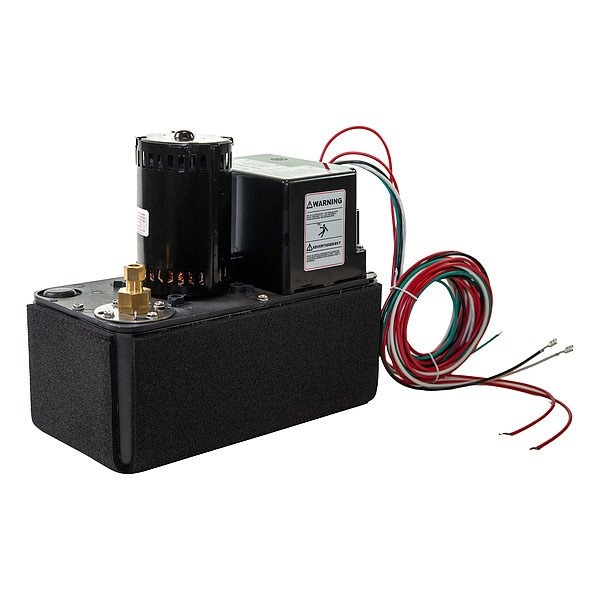

Condensate Removal Pump, 10.4 psi, Single

  • Mfr # A3X-1DR-230 / 134001P1

  • Zoro # G416261771

product price:  $815.99
/ea
Free Shipping & Returns

Key Features

Cord Length
6 ft
Pump Activation Type
Float Switch
Feet of Head - Maximum
30 ft
Overall Height
10.37 in
Overall Length
12 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A3X-1DR-230 / 134001P1
Zoro #
G416261771
UPC #
856472008774
Country of Origin
United States

Dimensions

Cord Length
6 ft
Overall Height
10.37 in
Overall Length
12 in
For Discharge Pipe Diameter
3/8 in
Overall Width
6 in
Manufacturer Warranty Length
1 yr
For Inlet Pipe Diameter
3/4 in
Wire Rope Length
12 in

Details

Item
Condensate Removal Pump
Pump Activation Type
Float Switch
Feet of Head - Maximum
30 ft
Number of Inlets
1
Product Type
Condensate Removal Pump
Discharge Standard
Barbed
Series
A3X-XX
Maximum Flow Rate @ 5 Feet of Head
5 gpm
Turn On Level
4 in
Horsepower
3/10 hp
Power Source - TS Only
Corded Electric
Ambient Temperature - Maximum
212 Degrees F
Maximum Flow Rate @ 10 Feet of Head
4.2 gpm
Tank Material
Polypropylene
Tank Opacity
Solid
Installation
Floor Standing
Frequency
50/60 Hz
Includes Safety Switch
Safety Switch Included
For Media Type
Clear Water
Media Temperature - Minimum
50 Degrees F
Application
Condensate Removal
Tank Capacity
1 gal
Includes Tubing
No Tubing Included
Full Load Current
1.06 A
Shut Off Level
0.5 in
Ambient Temperature - Minimum
50 Degrees F
Priming
Self-Priming
Maximum Flow Rate @ 20 Feet of Head
3.7 gpm
Media Temperature - Maximum
212 Degrees F
Connectivity
Auxiliary Contacts
Electrical Connection Type
Hardwired
Maximum Flow Rate @ 1 Feet of Head
6.4 gpm
Standards
UL 2043
Maximum Flow Rate @ 15 Feet of Head
4.6 gpm
Inlet Standard
Open
Phase
Single
Nameplate Voltage
230V AC
Operating Pressure - Maximum
10.4 psi
Pump Casing Material
Polypropylene
Float Material
Plastic
Pump Technology
Centrifugal
Power Source
Corded Electric

Description

Condensate Removal Pump, Horsepower 3/10 hp, Maximum Flow Rate @ 10 Feet of Head 4.2 gpm, Maximum Flow Rate @ 15 Feet of Head 4.6 gpm, Maximum Flow Rate @ 1 Foot of Head 6.4 gpm, Maximum Flow Rate @ 20 Feet of Head 3.7 gpm, Nameplate Voltage 230V AC, Series A3X-XX, Shut Off Level 0.5 in, Tank Capacity 1 gal, Turn On Level 4 in, Maximum Flow Rate @ 50 Feet of Head Not Applicable, Maximum Flow Rate @ 25 Feet of Head Not Applicable, Maximum Flow Rate @ 30 Feet of Head Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
