  9. Condensate Removal Pump, 1/2HP, 4 gal Tank

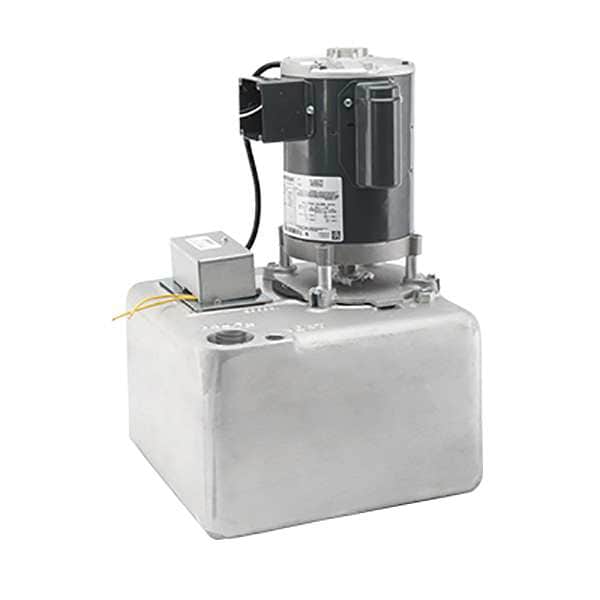

Hartell Condensate Removal Pump, 1/2HP, 4 gal Tank SC-1AX-115/230 - main

Condensate Removal Pump, 1/2HP, 4 gal Tank

  • Mfr # SC-1AX-115/230

  • Zoro # G600693708

product price: $2,066.99
/ea
Free Shipping & Returns

Key Features

Application
Condensate Removal
Pump Type
Standard
Includes
Motor Thermal Protection
Tank Material
Aluminum
Float Material
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SC-1AX-115/230
Zoro #
G600693708
UPC #
856472008330
Country of Origin
United States

Dimensions

Cord Length
6 ft
Compatible Discharge Pipe Size
3/4 in
Overall Width
12 in
Compatible Intake Pipe Size
1 1/2 in
Overall Height
19 in
Overall Length
12 in
Manufacturer Warranty Length
1 yr
For Inlet Pipe Diameter
1 1/2 in
For Discharge Pipe Diameter
3/4 in

Details

Item
Condensate Removal Pump
Application
Condensate Removal
Pump Type
Standard
Includes
Motor Thermal Protection
Tank Material
Aluminum
Float Material
Stainless Steel
Amps
3.7/ 7.46 A
Pump Activation Type
Float Switch
Maximum Ambient Temperature
212 Degrees F
Number of Intakes
1
For Use With Potable Systems
No
Intake Connection Style
FNPT
Frequency
50/60 Hz
Wetted Material
Aluminum
Pump Housing Material
Aluminum
Minimum Ambient Temperature
40 Degrees F
Maximum Flow Rate @ 30 Feet of Head
33.3 gpm
Maximum Media Temperature
212 Degrees F
Maximum Flow Rate @ 10 Feet of Head
63 gpm
Maximum Flow Rate @ 25 Feet of Head
46.7 gpm
Maximum Flow Rate @ 20 Feet of Head
47 gpm
Series Family
SC
Body Gasket Material
Neoprene
Nameplate Voltage
115/230V AC
Phase
Single
Electrical Connection Type
Hardwired
Series
SC-1A
Maximum Flow Rate @ 15 Feet of Head
50 gpm
Maximum Flow Rate @ 5 Feet of Head
70 gpm
Maximum Feet of Head
45 ft
Maximum Flow Rate @ 1 Feet of Head
4,500 gph
Horsepower
1/2 hp
Tank Capacity
4 gal
Maximum Flow Rate @ 40 Feet of Head
8.3 gpm
Minimum Media Temperature
40 Degrees F
Discharge Connection Style
FNPT
Plenum Rated
No
Shut Off Level
45 ft
Turn On Level
2 in
Compatible Media Type
Steam
For HVAC System Duct
Ducted
Includes Safety Switch
Safety Switch Included
For Media Type
Clear Water
Feet of Head - Maximum
45 ft
Connectivity
Auxiliary Contacts
Includes Tubing
No Tubing Included
Media Temperature - Maximum
212 Degrees F
Number of Inlets
1
Product Type
Condensate Removal Pump
Installation
Floor Standing
Tank Opacity
Solid
Ambient Temperature - Minimum
40 Degrees F
Full Load Current
3.7/ 7.46 A
Priming
Manual
Media Temperature - Minimum
40 Degrees F
Ambient Temperature - Maximum
212 Degrees F
Pump Casing Material
Aluminum
Discharge Standard
FNPT
Inlet Standard
FNPT

Description

Condensate Removal Pump, Discharge Connection Style FNPT, Horsepower 1/2 hp, Includes Motor Thermal Protection, Intake Connection Style FNPT, Maximum Feet of Head 45 ft, Maximum Flow Rate @ 10 Feet of Head 63 gpm, Maximum Flow Rate @ 15 Feet of Head 50 gpm, Maximum Flow Rate @ 1 Foot of Head 4,500 gph, Maximum Flow Rate @ 20 Feet of Head 47 gpm, Maximum Media Temperature 212 Degrees F, Nameplate Voltage 115/230V AC, Plenum Rated No, Pump Type Standard, Series SC-1A, Series Family SC

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
