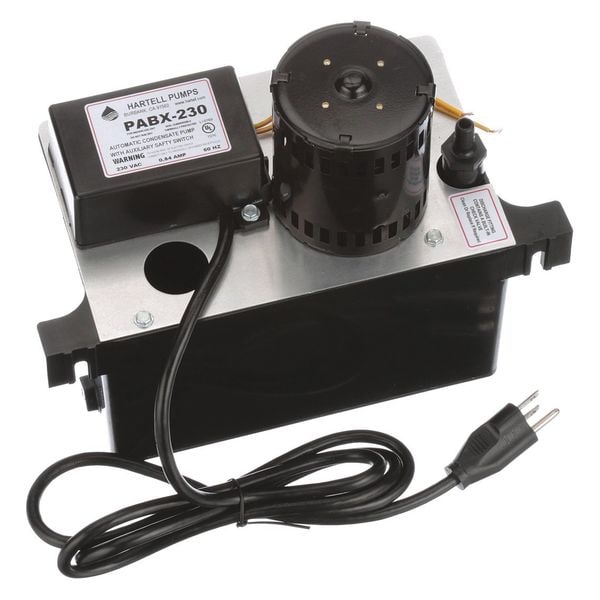

Condensate Pump, 1/25 HP, 230V, 0.84A, 125W

  • Mfr # PABX-230

  • Zoro # G1724130

product price:  $362.99
/ea
Free Shipping & Returns

Key Features

Condensate Pumps - Type
Condensate
Voltage
230
Reservoir Size - Pumps
Large
HP - Pumps
1/25 hp
Voltage - Pumps
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PABX-230
Zoro #
G1724130
UPC #
856472008118
Country of Origin
United States

Dimensions

Reservoir Size - Pumps
Large
Discharge Size - Pumps
3/8 in I. D.
Width
9 1/4 in
Length
6 in
Cord Length
6 ft
Height
9 3/4 in
Overall Width
9.25 in
Overall Height
9.75 in
Overall Length
6 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
3/4 in, 1 1/8 in, 1 3/8 in
Compatible Discharge Pipe Size
3/8 in
For Discharge Pipe Diameter
3/8 in
For Inlet Pipe Diameter
3/4 in, 1 1/8 in, 1 3/8 in
Wire Rope Length
6 in

Details

Condensate Pumps - Type
Condensate
Item
Condensate Removal Pump
Voltage
230
HP - Pumps
1/25 hp
Voltage - Pumps
230V AC
Reservoir Capacity - Pumps
1 gal
Max. Temp - Pumps
110 Degrees F
HP
1/25
Max. Pressure
9 psi
Float Material
Polypropylene
Discharge
3/8" I.D.
GPH of Water @ 12 Ft. of Head
135
Shut-Off
22 ft.
Watts
125 W
GPH of Water @ 9 Ft. of Head
84
Shaft Material
Aluminum
Amps
0.84 A
Pump Type
Standard
Max. Head - Pumps
22 ft
GPH of Water @ 20 Ft. of Head
68
Reservoir Capacity
1 gal.
GPH of Water @ 5 Ft. of Head
4000
GPH of Water @ 15 Ft. of Head
54
GPH of Water @ 1 Ft. of Head
126
Max. Temp.
110 Degrees F
Standards
cULus
Tank Material
Plastic
Application
Condensate Removal
Includes
Motor Thermal Protection
Maximum Flow Rate @ 15 Feet of Head
0.9 gpm
Tank Capacity
1 gal
Horsepower
1/16 hp
Body Gasket Material
Aluminum
Intake Connection Style
Open
Maximum Flow Rate @ 20 Feet of Head
1.13 gpm
Discharge Connection Style
Barbed
Plenum Rated
No
Maximum Operating Pressure
9 psi
Maximum Ambient Temperature
110 Degrees F
Maximum Flow Rate @ 10 Feet of Head
1.8 gpm
Electrical Connection Type
Plug-In
Pump Activation Type
Float Switch
Series Family
PABX
Number of Intakes
3
Maximum Feet of Head
22 ft
Maximum Flow Rate @ 1 Feet of Head
2.3 gpm
Series
PABX
Maximum Media Temperature
110 Degrees F
Nameplate Voltage
230V AC
For Use With Potable Systems
No
Maximum Flow Rate @ 5 Feet of Head
2.1 gpm
For Media Type
Clear Water
Inlet Standard
Open
Frequency
60 Hz
Priming
Manual
Ambient Temperature - Maximum
110 Degrees F
Full Load Current
0.84 A
Includes Safety Switch
Safety Switch Included
Number of Inlets
3
Media Temperature - Minimum
40 Degrees F
Connectivity
Auxiliary Contacts
Turn On Level
0.81 in
Installation
Floor Standing
Includes Tubing
No Tubing Included
Tank Opacity
Solid
Product Type
Condensate Removal Pump
Media Temperature - Maximum
110 Degrees F
Phase
Single
Power Source
Corded Electric
For HVAC System Duct
Ducted
Shut Off Level
22 ft
Feet of Head - Maximum
22 ft
Discharge Standard
Barbed
Power Source - TS Only
Corded Electric

Description

Condensate Removal Pump, Discharge Connection Style Barbed, Horsepower 1/16 hp, Includes Motor Thermal Protection, Intake Connection Style Open, Maximum Feet of Head 22 ft, Maximum Flow Rate @ 10 Feet of Head 1.8 gpm, Maximum Flow Rate @ 15 Feet of Head 0.9 gpm, Maximum Flow Rate @ 1 Foot of Head 2.3 gpm, Maximum Flow Rate @ 20 Feet of Head 1.13 gpm, Maximum Media Temperature 110 Degrees F, Nameplate Voltage 230V AC, Plenum Rated No, Pump Type Standard, Series PABX, Series Family PABX
