Shop HARTELL

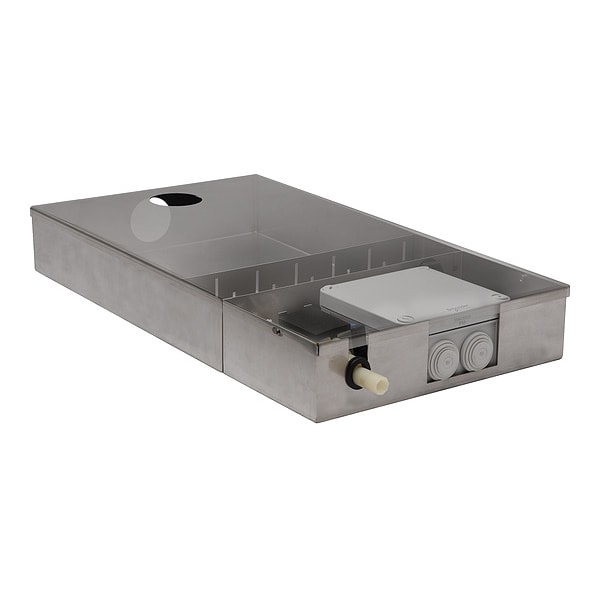

Condensate Removal Pump, SS, 1 gal , 60 Hz

  • Mfr # HDP-A1-H1-115-60

  • Zoro # G608230318

product price:  $762.99
/ea
Free Shipping & Returns

Key Features

Minimum Media Temperature
45 Degrees F
Pump Type
Low Profile
Maximum Operating Pressure
42.7 psi
Minimum Ambient Temperature
150 Degrees F
Horsepower
1/16 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HDP-A1-H1-115-60
Zoro #
G608230318
UPC #
856472008651
Country of Origin
United States

Dimensions

Compatible Discharge Pipe Size
1/2 in
Compatible Intake Pipe Size
1 1/2 in
Overall Width
10 in
Manufacturer Warranty Length
1 yr
Overall Height
2.5 in
Overall Length
18 in
For Inlet Pipe Diameter
1 1/2 in
For Discharge Pipe Diameter
1/2 in
Wire Rope Length
18 in

Details

Item
Condensate Removal Pump
Minimum Media Temperature
45 Degrees F
Pump Type
Low Profile
Maximum Operating Pressure
42.7 psi
Minimum Ambient Temperature
150 Degrees F
Horsepower
1/16 hp
Tank Material
Stainless Steel
Body Gasket Material
Neoprene
Tank Capacity
1 gal
Maximum Flow Rate @ 40 Feet of Head
6.5 gph
Phase
Single
Pump Activation Type
Float Switch
Series Family
HDP
Maximum Media Temperature
122 Degrees F
Electrical Connection Type
Hardwired
Pump Housing Material
Stainless Steel
Number of Intakes
1
Series
HDP-AI-H1
Nameplate Voltage
115V AC
Standards
CE uk/ca
Maximum Flow Rate @ 5 Feet of Head
0.33 gpm
Maximum Flow Rate @ 20 Feet of Head
8 gph
Maximum Flow Rate @ 50 Feet of Head
6 gph
For Use With Potable Systems
No
Discharge Connection Style
1/2"
Maximum Ambient Temperature
122 Degrees F
Maximum Flow Rate @ 15 Feet of Head
8.5 gph
Amps
0.1 A
Priming
Self-Priming
Maximum Feet of Head
105 ft
Maximum Flow Rate @ 30 Feet of Head
7 gph
Maximum Flow Rate @ 1 Feet of Head
20 gph
Maximum Flow Rate @ 10 Feet of Head
0.3 gpm
Compatible Media Type
Water
Shut Off Level
95 ft
Wetted Material
Plastic, Stainless Steel
Application
Condensate Removal
Frequency
60 Hz
Intake Connection Style
Open
Turn On Level
1.75 in
Plenum Rated
No
Float Material
Plastic
Maximum Flow Rate @ 25 Feet of Head
7.5 gph
Pump Casing Material
Stainless Steel
Feet of Head - Maximum
105 ft
Media Temperature - Maximum
122 Degrees F
Product Type
Refrigerated Display Case Condensate Removal Pump
Full Load Current
0.1 A
Connectivity
Auxiliary Contacts
Discharge Standard
Barbed
For Media Type
Clear Water
For HVAC System Duct
Ducted
Installation
Floor Standing
Ambient Temperature - Maximum
122 Degrees F
Includes Tubing
No Tubing Included
Media Temperature - Minimum
40 Degrees F
Inlet Standard
Open
Number of Inlets
1
Includes Safety Switch
Safety Switch Included
Alert Output
Audio, Visual
Ambient Temperature - Minimum
150 Degrees F
Tank Opacity
Solid

Description

Condensate Removal Pump, Discharge Connection Style 1/2 In., Horsepower 1/16 hp, Includes Not Applicable, Intake Connection Style Open, Maximum Feet of Head 105 ft, Maximum Flow Rate @ 10 Feet of Head 0.3 gpm, Maximum Flow Rate @ 15 Feet of Head 8.5 gph, Maximum Flow Rate @ 1 Foot of Head 20 gph, Maximum Flow Rate @ 20 Feet of Head 8 gph, Maximum Media Temperature 122 Degrees F, Nameplate Voltage 115V AC, Plenum Rated No, Pump Type Low Profile, Series HDP-AI-H1, Series Family HDP
