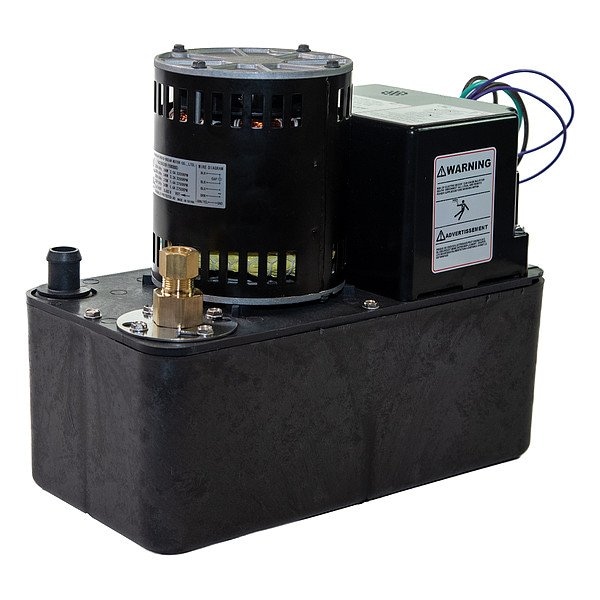

Condensate Removal Pump, 20.8 psi, Single

  • Mfr # A5X-1DR-230 / 1A19271P1
  • Zoro # G316261772
product price:
$
792.99
/ea
Free Shipping & Returns

Key Features

Float Material
Plastic
Pump Technology
Centrifugal
Maximum Flow Rate @ 10 Feet of Head
7.5 gpm
Nameplate Voltage
230V AC
Cord Length
6 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A5X-1DR-230 / 1A19271P1
Zoro #
G316261772
UPC #
856472008804
Country of Origin
United States

Dimensions

Cord Length
6 ft
Overall Width
6 in
For Inlet Pipe Diameter
3/4 in
Overall Height
10.37 in
Manufacturer Warranty Length
1 yr
For Discharge Pipe Diameter
3/8 in
Overall Length
12 in
Wire Rope Length
12 in
Length
12 in

Details

Item
Condensate Removal Pump
Float Material
Plastic
Pump Technology
Centrifugal
Maximum Flow Rate @ 10 Feet of Head
7.5 gpm
Nameplate Voltage
230V AC
Media Temperature - Maximum
212 Degrees F
Media Temperature - Minimum
50 Degrees F
Frequency
50/60 Hz
Maximum Flow Rate @ 20 Feet of Head
8 gpm
Includes Safety Switch
Safety Switch Included
Ambient Temperature - Maximum
212 Degrees F
Installation
Floor Standing
Maximum Flow Rate @ 15 Feet of Head
8.4 gpm
Maximum Flow Rate @ 1 Feet of Head
10 gpm
Tank Material
Polypropylene
Power Source
Corded Electric
Operating Pressure - Maximum
20.8 psi
Product Type
Condensate Removal Pump
Ambient Temperature - Minimum
50 Degrees F
Maximum Flow Rate @ 5 Feet of Head
9.2 gpm
Tank Opacity
Solid
Pump Activation Type
Float Switch
Phase
Single
Connectivity
Auxiliary Contacts
Tank Capacity
1 gal
Inlet Standard
Open
Turn On Level
4 in
Electrical Connection Type
Hardwired
Includes Tubing
No Tubing Included
Pump Casing Material
Polypropylene
Full Load Current
2.44 A
Shut Off Level
0.5 in
For Media Type
Clear Water
Priming
Self-Priming
Number of Inlets
1
Standards
UL 2043
Maximum Flow Rate @ 25 Feet of Head
6.5 gpm
Horsepower
3/5 hp
Discharge Standard
Barbed
Application
Condensate Removal
Series
A5X-XX
Feet of Head - Maximum
60 ft
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Condensate Removal Pump, Horsepower 3/5 hp, Maximum Flow Rate @ 10 Feet of Head 7.5 gpm, Maximum Flow Rate @ 15 Feet of Head 8.4 gpm, Maximum Flow Rate @ 1 Foot of Head 10 gpm, Maximum Flow Rate @ 20 Feet of Head 8 gpm, Nameplate Voltage 230V AC, Series A5X-XX, Shut Off Level 0.5 in, Tank Capacity 1 gal, Turn On Level 4 in, Maximum Flow Rate @ 50 Feet of Head Not Applicable, Maximum Flow Rate @ 25 Feet of Head 6.5 gpm, Maximum Flow Rate @ 30 Feet of Head Not Applicable
