  9. DIN-Power H015MS-3, 2C1-1-V2, PK 20

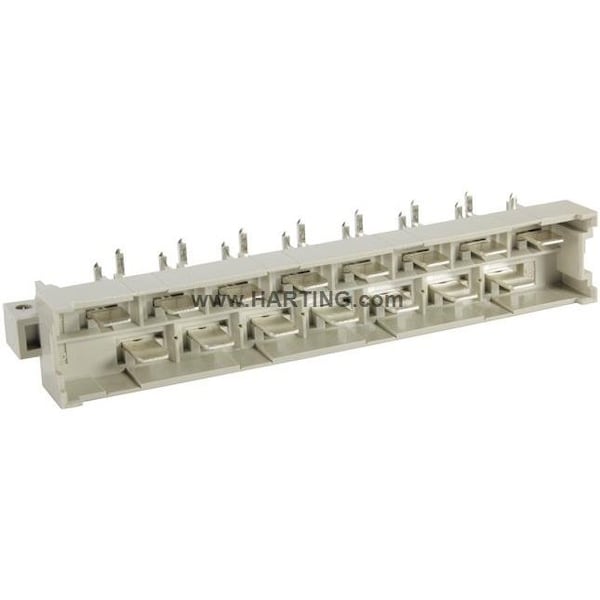

Harting DIN-Power H015MS-3, 2C1-1-V2, PK 20 09061152921 - main

DIN-Power H015MS-3, 2C1-1-V2, PK 20

  • Mfr # 09061152921

  • Zoro # G7736888

product price: $508.99
/pk 20, $25.45/ea
Free Shipping & Returns

Key Features

Color
Pebble Gray
Termination Type
Wave Soldering
Material
Glass Fiber Filled Thermoplastic Resin
Series
DIN 41612
Standards
IEC 60603-2; UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
09061152921
Zoro #
G7736888
UPC #
-
Country of Origin
Romania

Details

Item
Male Connector
Color
Pebble Gray
Termination Type
Wave Soldering
Material
Glass Fiber Filled Thermoplastic Resin
Series
DIN 41612
Standards
IEC 60603-2; UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079
Temp. Range
-55 to 125°C
Features
Lead-Free; Angled
Number of contacts
15
Specifications
IEC 60603-2
Insulation resistance
>10
Material (contacts)
Copper alloy
Element
Male connector
Isolation group
IIIa (175 ≤CTI < 400)
Insertion and withdrawal force
≤90 N
Identification
Type H15
Limiting temperature
-55 ... +125 °C
Performance level
1 || acc. to IEC 60603-2
Clearance distance
≥4.5 mm
Coding
Shroud coding || D20 coding
Surface (contacts)
Silver plated Termination side || Sn over Ni Termination side
Colour (insert)
RAL 7032 (pebble grey)
Railway classification
F4/I3 acc. to NFF 16-101/102
Creepage distance
≥8 mm
Contact spacing (mating side)
6.5 mm || 10.16 mm
Test voltage U r.m.s.
3.1 kV
Mating cycles
≥500
Rated current
Rated current measured at 20°C, see derating curve for details
Leading contact
z32 || z4
Connection type
Motherboard to daughtercard || PCB to cable
PCB fixing
With fixing flange
UL / CSA
UL 1977 ECBT2.E102079 || CSA-C22.2 No. 182.3 ECBT8.E102079
Termination Method
Wave soldering termination
Material flammability class acc. to UL 94
V-0
Contact spacing (termination side)
5.08 mm
Description of the contact
Angled
Material (insert)
Thermoplastic resin, glass-fibre filled
Contact Resistance
≤8 mΩ
Contact Configuration
Row d, positions 6, 10, ... , 26, 30 and row z, positions 4, 8, ... , 28, 32

Description

Connectors, Male connector, Wave soldering termination, Rated current: ‌15 A, Contacts: 15, Angled, Copper alloy, Silver plated
