  9. DIN-Power MH24+7FST4, 5C1-2, PK 20

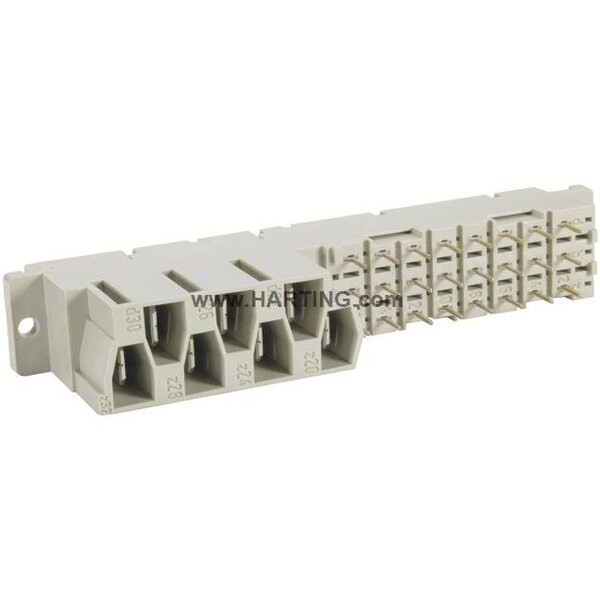

Harting DIN-Power MH24+7FST4, 5C1-2, PK 20 09062316822 - main

DIN-Power MH24+7FST4, 5C1-2, PK 20

  • Mfr # 09062316822

  • Zoro # G7738364

product price: $793.99
/pk 20, $39.70/ea
Free Shipping & Returns

Key Features

Color
Pebble Gray
Temp. Range
-55 to 125°C
Termination Type
Wave Soldering
Material
Glass Fiber Filled Thermoplastic Resin
Series
DIN 41612
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
09062316822
Zoro #
G7738364
UPC #
-
Country of Origin
Germany

Dimensions

Termination length
4.5 mm

Details

Item
Female Connector
Color
Pebble Gray
Temp. Range
-55 to 125°C
Termination Type
Wave Soldering
Material
Glass Fiber Filled Thermoplastic Resin
Series
DIN 41612
Features
Lead-Free; Straight
Standards
IEC 60603-2 (complementary); UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079
Number of contacts
31
Rated current (signal)
6A
Rated current
Rated current measured at 20°C, see derating curve for details
Insulation resistance
>10
Number of Signal Contacts
24
Rated current (power)
15 A
Specifications
IEC 60603-2 (complementary)
Contact Configuration
Rows b, d and z, positions 2, 4, ... , 14, 16 and row d, positions 22, 26, 30 and row z, positions 20, 24, 28, 32
Termination Method
Wave soldering termination
Contact spacing (mating side)
3.81 mm || 5.08 mm
Coding
Hole coding || Shroud coding || Coding with loss of contacts || D20 coding
Contact Resistance
≤15 mΩ
UL / CSA
UL 1977 ECBT2.E102079 || CSA-C22.2 No. 182.3 ECBT8.E102079
Contact spacing (termination side)
5.08 mm
PCB fixing
With fixing flange
Isolation group
IIIa (175 ≤CTI < 400)
Insertion and withdrawal force
≤85 N
Identification
Type MH 24+7
Test voltage U r.m.s.
1.55 kV
Colour (insert)
RAL 7032 (pebble grey)
Railway classification
F4/I3 acc. to NFF 16-101/102
Material flammability class acc. to UL 94
V-0
Surface (contacts)
Gold plated Mating side, signal contacts || Silver plated Mating side, power contacts || Tin plated Termination side, signal contacts || Tin plated Termination side, power contacts
Material (insert)
Thermoplastic resin, glass-fibre filled
Performance level
2 || acc. to IEC 60603-2
Material (contacts)
Copper alloy
Description of the contact
Straight
Limiting temperature
-55 ... +125 °C
Number of power contacts
7
Clearance distance
≥1.6 mm || ≥4.5 mm
Connection type
Motherboard to daughtercard || PCB to cable || Cable to cable
Element
Female connector
Creepage distance
≥3 mm || ≥8 mm
Mating cycles
≥400

Description

Connectors, Female connector, Wave soldering termination, Rated current: ‌6 A, ‌15 A, Contacts: 31, Straight, Copper alloy, Gold plated, Mating side, signal contacts, Silver plated, Mating side, power contacts, Tin plated
