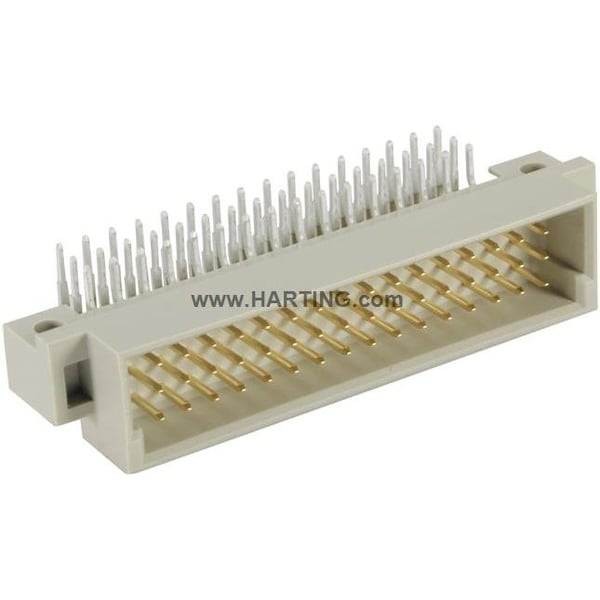

Gds A-2C 46+2 Pin Male Level 2

  • Mfr # 09231486951

  • Zoro # G7738172

product price:
$
8.59
/ea

Key Features

Color
Pebble Gray
Series
DIN 41612
Material
Glass Fiber Filled Thermoplastic Resin
Temp. Range
-55 to 125°C
Standards
IEC 60603-2 (complementary); UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
09231486951
Zoro #
G7738172
UPC #
-
Country of Origin
Germany

Details

Item
Male Connector
Color
Pebble Gray
Series
DIN 41612
Material
Glass Fiber Filled Thermoplastic Resin
Temp. Range
-55 to 125°C
Standards
IEC 60603-2 (complementary); UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079
Termination Type
Wave Soldering
Features
Lead-Free; Angled
Number of contacts
48
Insertion and withdrawal force
≤45 N
Contact Resistance
≤20 mΩ
Contact rows
3
UL / CSA
UL 1977 ECBT2.E102079 || CSA-C22.2 No. 182.3 ECBT8.E102079
Surface (contacts)
Noble metal Mating side || Sn over Ni Termination side
Railway classification
F4/I3 acc. to NFF 16-101/102
Identification
Type 2C
Leading contact
a1 || a16
Contact spacing (termination side)
2.54 mm
Clearance distance
≥1.2 mm
PCB fixing
With fixing flange
Specifications
IEC 60603-2 (complementary)
Termination Method
Wave soldering termination
Material (insert)
Thermoplastic resin, glass-fibre filled
Rated current
Rated current measured at 20°C, see derating curve for details
Performance level
2 || acc. to IEC 60603-2
Limiting temperature
-55 ... +125 °C
Connection type
Motherboard to daughtercard || Extender card || PCB to cable
Test voltage U r.m.s.
1 kV
Contact spacing (mating side)
2.54 mm
Coding
Coding with loss of contacts
Material flammability class acc. to UL 94
V-0
Colour (insert)
RAL 7032 (pebble grey)
Element
Male connector
Contact Configuration
Rows a, b and c, positions 1, 2, ... , 15, 16
Material (contacts)
Copper alloy
Insulation resistance
>10
Creepage distance
≥1.2 mm
Isolation group
IIIa (175 ≤CTI < 400)
Mating cycles
≥400
Description of the contact
Angled

Description

Connectors, Male connector, Wave soldering termination, Rated current: ‌2 A, Contacts: 48, Angled, Copper alloy, Noble metal
