DIN-Signal C096FP-4, 5C1-2, PK 100
Mfr # 09032966850
Zoro # G2773720
product price: $703.99
/pk 100, $7.04/ea
Free Shipping & Returns
Key Features
Color
Pebble Gray
Insulation Material
Glass Fiber Filled Thermoplastic Resin
Current
2 A
Series
DIN 41612
Standards
UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 09032966850
- Zoro #
- G2773720
- UPC #
- -
- Country of Origin
- Germany
Details
- Item
- PCB Connector
- Color
- Pebble Gray
- Insulation Material
- Glass Fiber Filled Thermoplastic Resin
- Current
- 2 A
- Series
- DIN 41612
- Standards
- UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- RoHS Compliant
- Lead Free
- Connection Material
- Copper Alloy
- Green Environmental Attribute
- Lead Free
- Terminal Type
- Press-In
- Material
- Glass Fiber Filled Thermoplastic Resin
- Finish
- Noble Metal over Ni (Mating Side); Ni (Termination side)
- Max. Temp.
- 105°C
- Sub-Category
- Connectors
- Description/Special Features
- Straight
- Approximate Amperage Rating - Grounding Braid
- 2 A
- Contact Finish
- Noble Metal; Nickel Plated
- Number of Contacts
- 96
- Number of Rows
- 3
- Flammability Rating
- UL 94 V-0
Description

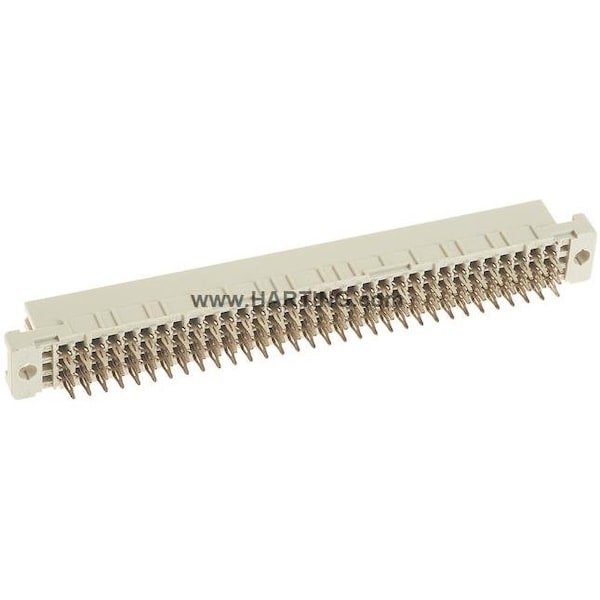

Connectors, Female connector, Press-in termination, Rated current: 2 A, Contacts: 96, Straight, Copper alloy, Noble metal, Mating side, Nickel plated
