  9. Han 2Mod-F-Ax 70A, 10-22 sq mm, PK 2

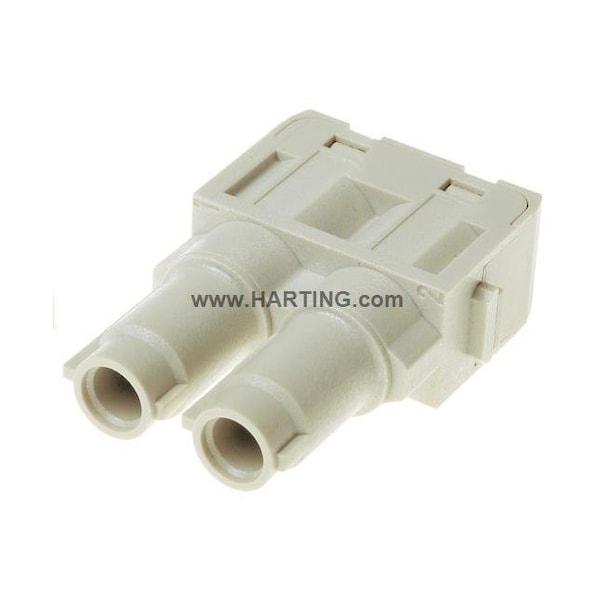

Harting Han 2Mod-F-Ax 70A, 10-22 sq mm, PK 2 09140022742 - main

Han 2Mod-F-Ax 70A, 10-22 sq mm, PK 2

  • Mfr # 09140022742

  • Zoro # G2045221

product price: $143.99
/pk 2, $72.00/ea
Free Shipping & Returns

Key Features

Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
1,000 V
Current
70 A
Maximum Operating Temperature
125 Degrees C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
09140022742
Zoro #
G2045221
UPC #
-
Country of Origin
Germany

Dimensions

Max. Single Wire Size
22 mm2
Min. Single Wire Size
14 mm2
Minimum Single Wire Size
112 AWG
Maximum Single Wire Size
4 AWG

Details

Item
Connector Module
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
1,000 V
Current
70 A
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Series
Han-Modular
Material
Polycarbonate
Terminal Type
Axial Screw
Max. Voltage
1000 V
Max. Temp.
125°C
Connection Material
Copper Alloy
Green Environmental Attribute
Pollution Degree 3
Sub-Category
Modules
Connector Type
Female
Standards
EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; UL 2237 PVVA2.E318390; CSA-C22.2 No. 182.3 PVVA8.E318390
Approximate Amperage Rating - Grounding Braid
70 A
Finish
Silver Plated
Number of Contacts
2
Current Rating
70 A
Contact Finish
Silver Plated
Flammability Rating
UL 94 V-0

Description

Han® 70 A module, Axial screw termination, Female, Contacts: 2, Conductor cross-section: 14 ... 22 mm2, Rated current: ‌70 A, Polycarbonate (PC), RAL 7032 (pebble grey), Copper alloy, Silver plated
