Shop HARTING

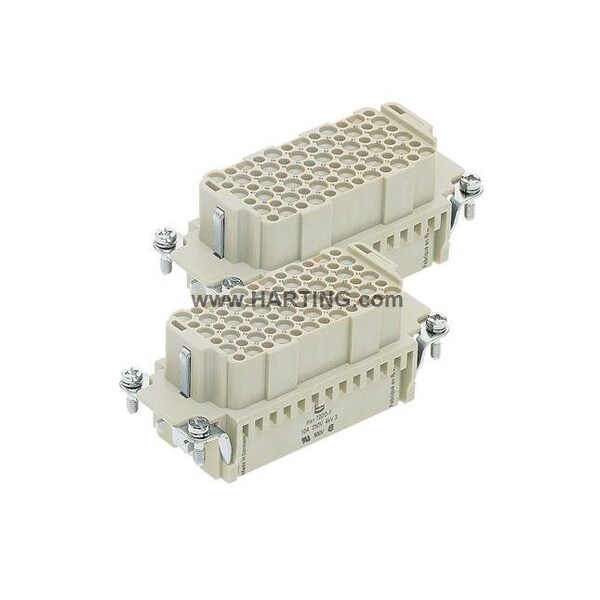

Han Dd 72 Pos. F Insert Crimp

  • Mfr # 09160723111

  • Zoro # G2044899

product price:  $47.45
/ea

Key Features

Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
250 V
Current
10 A
Maximum Operating Temperature
125 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
09160723111
Zoro #
G2044899
UPC #
-
Country of Origin
Romania

Dimensions

Max. Single Wire Size
2.5 mm2
Min. Single Wire Size
0.14 mm2
Minimum Single Wire Size
26 AWG
Maximum Single Wire Size
14 AWG

Details

Item
Contact Insert
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
250 V
Current
10 A
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Max. Voltage
250 V
Series
Han DD
Sub-Category
Inserts
Terminal Type
Crimp
Material
Polycarbonate
Max. Temp.
125°C
Green Environmental Attribute
Pollution Degree 3
Connector Type
Female
Approximate Amperage Rating - Grounding Braid
10 A
Standards
EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; CSA-C22.2 No. 182.3 ECBT8.E235076
Number of Contacts
144
Current Rating
10 A
Flammability Rating
UL 94 V-0

Description

Inserts, Crimp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌10 A, Size: 32 B, Contacts: 144, Conductor cross-section: 0.14 ... 2.5 mm2
