Shop HARTING

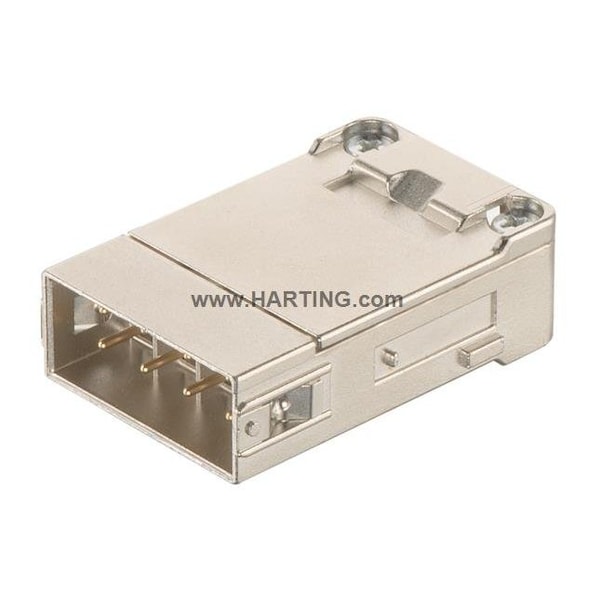

Han Gigabit Module Male 8+Shie

  • Mfr # 09140083011

  • Zoro # G2044978

product price:  $65.29
/ea

Key Features

Color
Pebble Gray
Insulation Material
Polycarbonate; Die Cast Zinc
Maximum Voltage
50 V AC/60 V DC
Current
5 A
Maximum Operating Temperature
85 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
09140083011
Zoro #
G2044978
UPC #
-
Country of Origin
Germany

Dimensions

Min. Single Wire Size
0.09 mm2
Max. Single Wire Size
0.52 mm2
Maximum Single Wire Size
20 AWG
Minimum Single Wire Size
28 AWG

Details

Item
Connector Module
Color
Pebble Gray
Insulation Material
Polycarbonate; Die Cast Zinc
Maximum Voltage
50 V AC/60 V DC
Current
5 A
Maximum Operating Temperature
85 Degrees C
UL 94 Flammability Rating
V-0
Material
Polycarbonate; Die Cast Zinc
Standards
EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; CSA-C22.2 No. 182.3 ECBT8.E235076
Connector Type
Male
Green Environmental Attribute
Pollution Degree 3
Approximate Amperage Rating - Grounding Braid
5 A
Max. Temp.
85°C
Sub-Category
Inserts
Terminal Type
Crimp
Max. Voltage
50 V AC; 60 V DC
Number of Contacts
8
Current Rating
5 A
Flammability Rating
UL 94 V-0

Description

Crimp termination, Male, Contacts: 8, + shielding, Conductor cross-section: 0.09 ... 0.52 mm2, Rated current: ‌5 A, Polycarbonate (PC), RAL 7032 (pebble grey)
