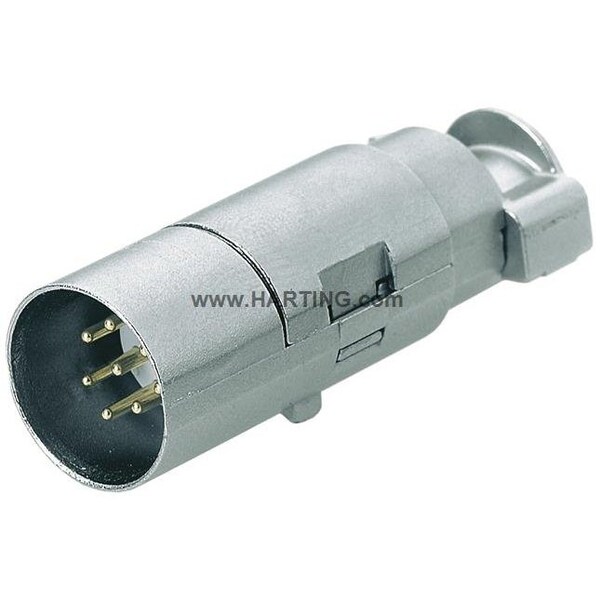

Han High Density Quintax Male
- Mfr # 09150083013
- Zoro # G2044278
product price:
$
84.65
/ea
Key Features
Color
Pebble Gray
Insulation Material
Polycarbonate; Die Cast Zinc
Maximum Voltage
50 V
Current
5 A
Maximum Operating Temperature
85 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 09150083013
- Zoro #
- G2044278
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Max. Single Wire Size
- 0.52 mm2
- Min. Single Wire Size
- 0.09 mm2
- Minimum Single Wire Size
- 28 AWG
- Maximum Single Wire Size
- 20 AWG
Details
- Item
- Connector Module
- Color
- Pebble Gray
- Insulation Material
- Polycarbonate; Die Cast Zinc
- Maximum Voltage
- 50 V
- Current
- 5 A
- Maximum Operating Temperature
- 85 Degrees C
- UL 94 Flammability Rating
- V-0
- Sub-Category
- Inserts
- Material
- Polycarbonate; Die Cast Zinc
- Standards
- EN 45545-2 (2020-08); UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079
- Approximate Amperage Rating - Grounding Braid
- 5 A
- Connector Type
- Male
- Green Environmental Attribute
- Pollution Degree 3
- Max. Temp.
- 85°C
- Max. Voltage
- 50 V
- Series
- Han-Quintax High Density
- Number of Contacts
- 8
- Current Rating
- 5 A
- Flammability Rating
- UL 94 V-0
Description
Male, Contacts: 8, + shielding, Conductor cross-section: 0.09 ... 0.52 mm2, Rated current: 5 A, Polycarbonate (PC), RAL 7032 (pebble grey)
