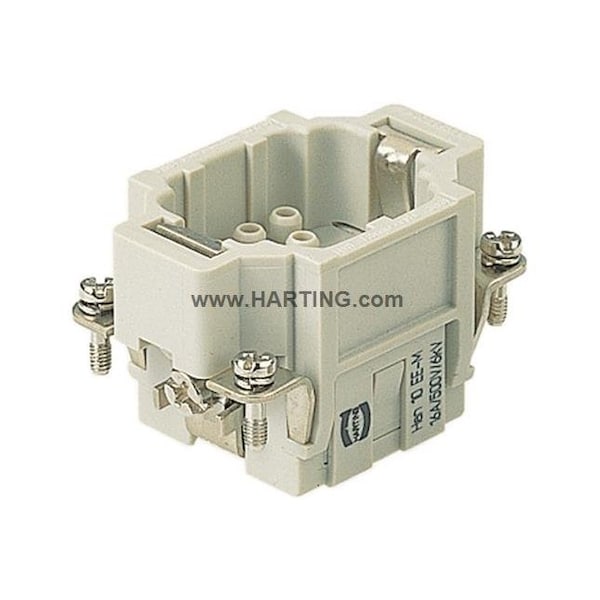

Rectangular Connector Insert, 16 A

Name: Rectangular Connector Insert, 16 A
Brand: Harting
SKU: G305301922
Price: 28.39 USD
Availability: InStock

28.39

/ea

Type

Male

Color

Pebble Gray

Insulation Material

Polycarbonate

Maximum Voltage

500 V

Current

16 A

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: 09320103001
Zoro #: G305301922
UPC #: -
Country of Origin: Romania
Item: Industrial Rectangular Connector Insert
Type: Male
Color: Pebble Gray
Insulation Material: Polycarbonate
Maximum Voltage: 500 V
Current: 16 A
Minimum Operating Temperature: -40 Degrees C
Maximum Operating Temperature: 125 Degrees C
Number of Ports: 10
UL 94 Flammability Rating: V-0
RoHS Compliant: Yes
Application: Industrial Connectors
Material: Polycarbonate
Minimum Insulation Resistance: 1.00 x 10^10 ohm
Connector Gender: Male
Includes Poles: No
Insert Color: Gray
Connection Type: Crimp
Minimum Mating Cycles: 500
Current Rating: 16 A
Number of Poles: 10
Insert Material: Polycarbonate
Voltage Rating: 500V, 600V (UL/CSA)
Connector Type: Male
Green Environmental Attribute: Pollution Degree 3
Sub-Category: Inserts
Max. Voltage: 500V
Terminal Type: Crimp
Max. Temp.: 125°C
Series: Han(R) EE
Standards: California Proposition 65, China RoHS, DNV GL, ELV Compliant, EN 60664-1, RoHS Complaint, UL/CSA
Number of Contacts: 10
Flammability Rating: UL 94 V-0
Termination Style: Crimp

HAEL 09320103001 CONNECTOR
