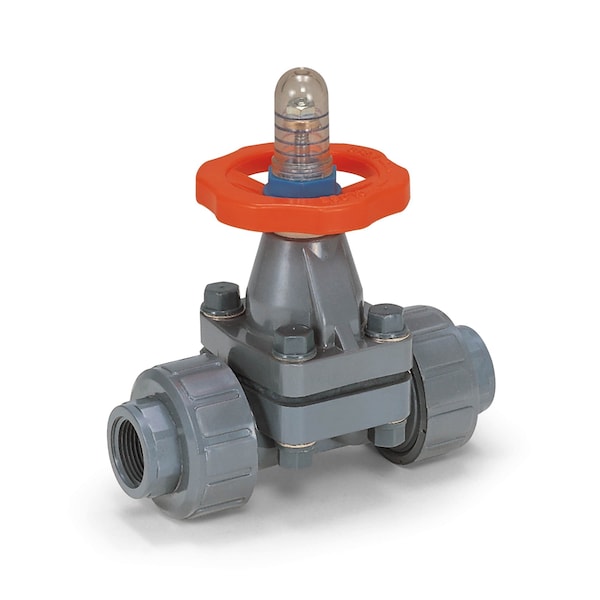

CPVC Diaphragm Valve
Mfr # DAB2020UFF
Zoro # G507963522
product price:Â
$
799.99
/ea
Free Shipping & Returns
Key Features
Valve Design
2-Way
Pipe Size
2 in
Connection
Threaded x True Union Socket
Coefficient of Volume
56
Body Material
CPVC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- DAB2020UFF
- Zoro #
- G507963522
- UPC #
- -
- Country of Origin
- United States
- Item
- Manual Diaphragm Valve
- Valve Design
- 2-Way
- Connection
- Threaded x True Union Socket
- Coefficient of Volume
- 56
- Body Material
- CPVC
- Seal Material
- FKM
- Diaphragm Material
- FKM
- Max. Pressure
- 150 psi
- Connection Type - Side 2
- Socket
- Manufacturer Warranty
- 3 yr
- For Media
- Chemicals
- Operating Temperature - Minimum
- 34 Degrees F
- Maximum Pressure - Operating
- 150 psi
- Connection Type - Side 1
- NPT
- Handle Type
- Wheel
- Special Features
- Position Indicator
- Diaphragm Valve Type
- 2-Way
- Operating Temperature - Maximum
- 190 Degrees F
- Coefficient of Volume (Cv)
- 56
- Standards
- ASTM D1784
- Valve Series
- DAB
Description
Manual Diaphragm Valve, Coefficient of Volume (Cv) 56, Nominal Valve Size 2 in, Connection Type - Side 1 NPT, Connection Type - Side 2 Socket, For Media Chemicals, Standards ASTM D1784, Diaphragm Material FKM, Seal Material FKM, Maximum Pressure - Operating 150 psi, Operating Temperature - Maximum 190 Degrees F, Diaphragm Valve Type 2-Way, Handle Type Wheel, Body Material CPVC, Special Features Position Indicator, Inlet Connection Gender Not Applicable, Overall Length 8.27 in
