  11. Pressure Valve, 1/4" Pipe, 250 psi, PVC

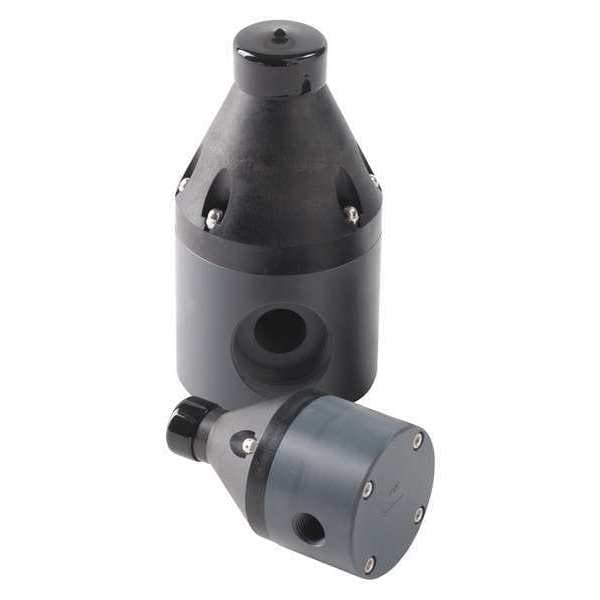

Hayward Flow Control Pressure Valve, 1/4" Pipe, 250 psi, PVC PBV1025TPE1 - main

Pressure Valve, 1/4" Pipe, 250 psi, PVC

  • Mfr # PBV1025TPE1

  • Zoro # G9886269

product price: $269.59
/ea
Free Shipping & Returns

Key Features

Pipe Size
1/4"
Inlet Size
1/4"
Port Size
1/4" x 1/4"
Connection Type
FNPT
Body Material
PVC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PBV1025TPE1
Zoro #
G9886269
UPC #
610377302975
Country of Origin
United States

Dimensions

Pipe Size
1/4"
Inlet Size
1/4"
Port Size
1/4" x 1/4"
Length
2.35"
Height
3.55"
Overall Height
3 9/16 in
Outlet Connection Size
1/4 in
Inlet Connection Size
1/4 in
Overall Width
2 3/8 in

Details

Connection Type
FNPT
Body Material
PVC
Max. Pressure
250 psi
Max. Temp.
70 Degrees F
Item
Pressure Reducing Control Valve
Max. Continuous Flow Rate
5.7 gpm
Application
Chemical Dosing, Transfer and Processing, Chlorination Systems
Elastomer Material
EPDM
Nut Material
Stainless Steel
Max. Fluid Temp.
140 Degrees F
Valve Type
Pressure Reducing
Cover Material
Noryl(TM)
Pressure Adjustment Range
10 to 150 psi
Max. Intermittent Flow Rate
1.8 gpm
Operating Pressure
250 psi
Spring Material
Zinc Plated
Max. Continous Flow Rate
5.7 gpm
Standards
ANSI 372, ANSI 61
Seat Material
PTFE
Factory Set Pressure
50 psi
Outlet Connection Type
NPT
Pilot Adjustment - Minimum
10 psi
NSF Certifications for Food and Drinking Water
NSF 372, NSF 61
Operating Pressure - Minimum
5 psi
Flow Rate - Continuous Maximum
5 gpm
Operating Pressure - Maximum
250 psi
Bonnet Material
PPE
Fluid Temperature - Maximum
140 Degrees F
Flow Rate - Intermittent Maximum
1.8 gpm
Port Design
Reduced Port
Inlet Connection Type
NPT
Pilot Adjustment - Maximum
150 psi

Description

Pressure Valve,1/4" Pipe,250 psi,PVC
