Shop HDE

CableandInsulationTester, LightAlert, IP64

  • Mfr # UCT-8/K01

  • Zoro # G322841500

product price:
$
2,557.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Includes

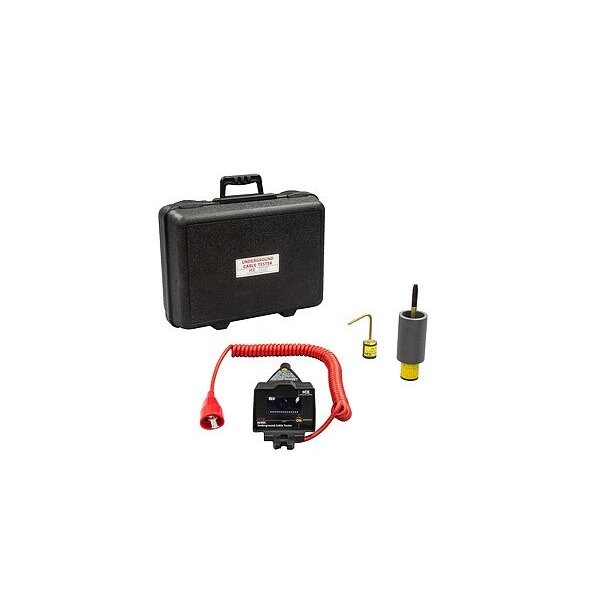

025-OLPS-5 Overhead Brass Hook Probe, ASP-15/25 UG Bushing Probe, CS-UCT Plastic Carrying Case, UCT-8 Underground Cable Fault Tester
Features
Can be Used upto a Distance of 1500 ft (457 m), Clear and Simple Test Results - Analog Bar Graph and Indication of Good or Faulted Cable, Lightweight, Single Hot Stick Operation for Testing Cable, No External Power Required - Self-Contained 8k VDC Voltage Source, Safety Feature - Measures AC Voltage Before Converting to a DC Voltage Tester
Maximum Fault Locating Depth
1,500 ft
Maximum Output Voltage
25 kV AC
Manufacturers Warranty Length
3 yr Limited
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UCT-8/K01
Zoro #
G322841500
UPC #
0783310081388
Country of Origin
United States

Dimensions

Maximum Fault Locating Depth
1,500 ft
Manufacturers Warranty Length
3 yr Limited
Maximum Fault Locating Length
300 ft
Battery Size
9V

Details

Item
Cable and Insulation Tester
Includes
025-OLPS-5 Overhead Brass Hook Probe, ASP-15/25 UG Bushing Probe, CS-UCT Plastic Carrying Case, UCT-8 Underground Cable Fault Tester
Features
Can be Used upto a Distance of 1500 ft (457 m), Clear and Simple Test Results - Analog Bar Graph and Indication of Good or Faulted Cable, Lightweight, Single Hot Stick Operation for Testing Cable, No External Power Required - Self-Contained 8k VDC Voltage Source, Safety Feature - Measures AC Voltage Before Converting to a DC Voltage Tester
Maximum Output Voltage
25 kV AC
IP Rating
IP64
Calibration Certificate Included
No Certification Included
Display Type
Digital
Number of Batteries Required
1
Maximum Frequency Measurement
60 Hz
Alert Type
Light
Standards
ANSI 1604LC, CE, IEC 6LR61
Testing Functions
Fault Current, Leakage Current
Power Source
Battery
Minimum Frequency Measurement
50 Hz
Display Screen Type
LED
CAT Safety Rating
CAT IV
Special Features
Compact and Lightweight Solution for Underground Cable Testing, DC Hi-Pot Test of De-Energized, Shielded Underground Primary Cable
Minimum Output Voltage
100 V AC
Receiver to Transmitter Distance
12 ft
Inductive Frequencies
50 Hz or 60 Hz
Power Source - TS Only
Battery
Power Source - old
Battery

Description

Cable and Insulation Tester, Alert Type Light, Battery Chemistry Lithium, Battery Size 9V, CAT Safety Rating CAT IV, Display Screen Type LED, Display Type Digital
