Shop HDE

CableandInsulationTester, LightAlert, IP64

  • Mfr # UCT-8

  • Zoro # G322842453

product price:  $2,640.99
/ea
Free Shipping & Returns

Key Features

Includes

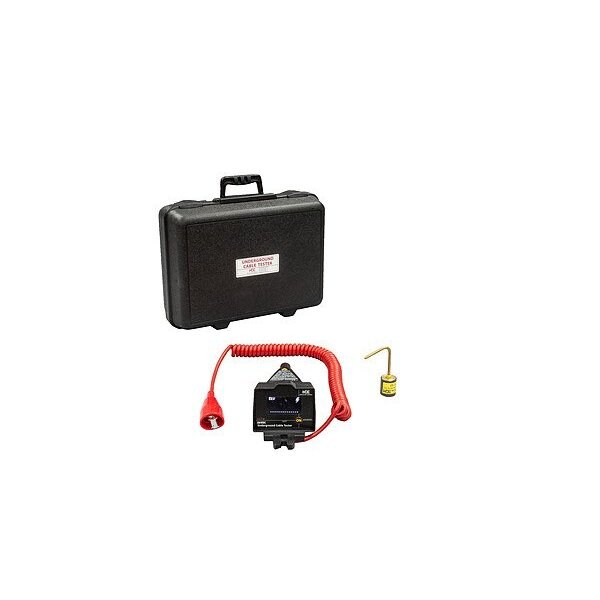

025-OLPS-5 Overhead Brass Hook Probe, CS-UCT Plastic Carrying Case, UCT-8 Underground Cable Fault Tester
Maximum Output Voltage
25 kV AC
Standards
ANSI 1604LC, CE, IEC 6LR61
Maximum Frequency Measurement
60 Hz
Alert Type
Light
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
UCT-8
Zoro #
G322842453
UPC #
0783310081371
Country of Origin
United States

Dimensions

Battery Size
9V
Maximum Fault Locating Length
300 ft
Maximum Fault Locating Depth
1,500 ft
Manufacturers Warranty Length
3 yr Limited

Details

Item
Cable and Insulation Tester
Includes
025-OLPS-5 Overhead Brass Hook Probe, CS-UCT Plastic Carrying Case, UCT-8 Underground Cable Fault Tester
Maximum Output Voltage
25 kV AC
Standards
ANSI 1604LC, CE, IEC 6LR61
Maximum Frequency Measurement
60 Hz
Alert Type
Light
CAT Safety Rating
CAT IV
Number of Batteries Required
1
Display Type
Digital
Display Screen Type
LED
IP Rating
IP64
Minimum Frequency Measurement
50 Hz
Calibration Certificate Included
No Certification Included
Receiver to Transmitter Distance
12 ft
Special Features
Compact and Lightweight Solution for Underground Cable Testing, DC Hi-Pot Test of De-Energized, Shielded Underground Primary Cable
Minimum Output Voltage
100 V AC
Power Source
Battery
Testing Functions
Fault Current, Leakage Current
Inductive Frequencies
50 Hz or 60 Hz
Features
Can be Used upto a Distance of 1500 ft (457 m), Clear and Simple Test Results - Analog Bar Graph and Indication of Good or Faulted Cable, Lightweight, Single Hot Stick Operation for Testing Cable, No External Power Required - Self-Contained 8k VDC Voltage Source, Safety Feature - Measures AC Voltage Before Converting to a DC Voltage Tester
Power Source - TS Only
Battery

Description

Cable and Insulation Tester, Alert Type Light, Battery Chemistry Lithium, Battery Size 9V, CAT Safety Rating CAT IV, Display Screen Type LED, Display Type Digital
