Phasing Meter, Digital, 138 kV, 50 Hz/60 Hz

  • Mfr # DDVIP-138/K02

  • Zoro # G722841759

product price:
$
5,009.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Includes

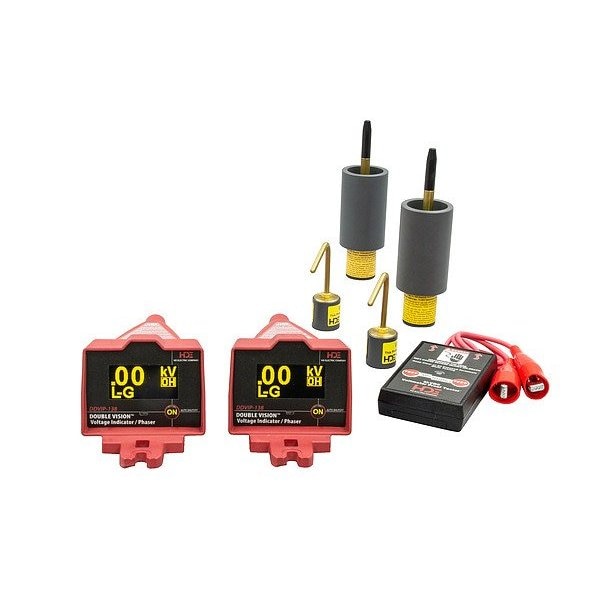

(2) 025-OLPS-5 Overhead Brass Hook Probes, (2) ASP-15/25 15kV/25kV UG Bushing Probe, (2) PT-DDVIP Proof Tester, CS-DDVM Case
Standards
CE
Frequency Rating
50 Hz; 60 Hz
Minimum AC Voltage Measured
100 V
Maximum Operating Temperature
120 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DDVIP-138/K02
Zoro #
G722841759
UPC #
0783310042990
Country of Origin
United States
Item
Phasing Meter
Includes
(2) 025-OLPS-5 Overhead Brass Hook Probes, (2) ASP-15/25 15kV/25kV UG Bushing Probe, (2) PT-DDVIP Proof Tester, CS-DDVM Case
Standards
CE
Frequency Rating
50 Hz; 60 Hz
Minimum AC Voltage Measured
100 V
Maximum Operating Temperature
120 Degrees F
Number of Voltage Ranges
2
Number of Digits
3
Power Source
Battery
Testing Functions
AC Voltage
Auto Ranging
No
Features
Capacitive Test Point and Peak Hold Modes, Clear In-Phase and Out-of-Phase Indication, Versatile for Overhead and Underground Applications
Display Type
Digital
Display Screen Type
LED
Maximum AC Voltage Measured
138 kV
Detector Communication Distance - Maximum
100 ft
Product Type
Phasing Meter
IP Rating
IP64
Battery Chemistry
Alkaline, Lithium
CAT Safety Rating
Not Rated
Minimum Operating Temperature
-20 Degrees F
Voltage Accuracy
15%
Includes Peak Hold
Peak Hold Included
Alert Type
Digital Display
Power Source - TS Only
Battery
Power Source - old
Battery

Description

Phasing Meter, Alert Type Digital Display, Auto Ranging No, Compatible Hot Stick Not Applicable, Display Screen Type LED, Display Type Digital, Features Capacitive Test Point and Peak Hold Modes, Clear In-Phase and Out-of-Phase Indication, Versatile for Overhead and Underground Applications, Frequency Rating 50 Hz; 60 Hz, Includes (2) 025-OLPS-5 Overhead Brass Hook Probes, (2) ASP-15/25 15kV/25kV UG Bushing Probe, (2) PT-DDVIP Proof Tester, CS-DDVM Case, Maximum AC Voltage Measured 138 kV
