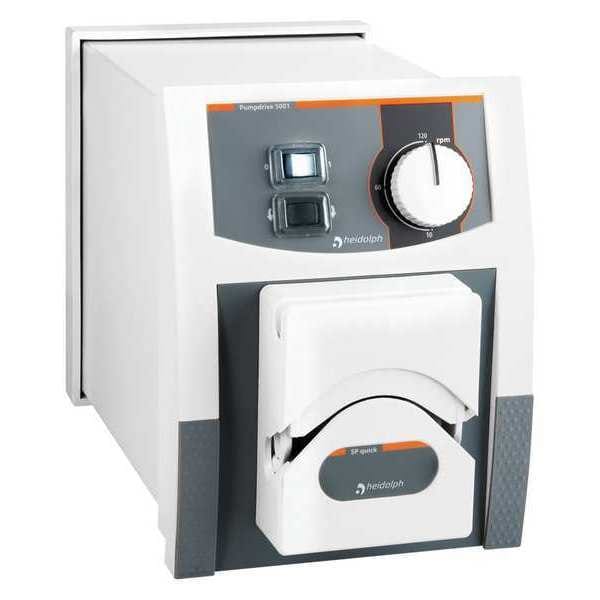

Heidolph Chemical Metering Pump Set, 5.77 gph 036150130 - main

Chemical Metering Pump Set, 5.77 gph

  • Mfr # 036150130

  • Zoro # G0253480

product price: $3,684.99
/ea
Free Shipping & Returns

Key Features

Chemical Metering Pump Type
Peristaltic
Flow Rate Output Control
Variable
Max. Flow (gpd) - Pumps
138.48 gpd
Voltage
115
Max. Pressure - Pumps
29 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
036150130
Zoro #
G0253480
UPC #
-
Country of Origin
Germany

Dimensions

Width
6 17/32 in
Length
10 5/64 in
Height
8 55/64 in
Overall Width
6.5 in
Overall Height
8.9 in
Overall Length
10.1 in

Details

Chemical Metering Pump Type
Peristaltic
Flow Rate Output Control
Variable
Max. Flow (gpd) - Pumps
138.48 gpd
Voltage
115
Max. Pressure - Pumps
29 psi
Voltage - Pumps
115V AC
Phase - Pumps
1
Max. Viscosity - Pumps
3,500 cps
HP - Pumps
1/7 hp
Reproducibility - Pumps
+/-5.0%
Max. Flow Rate
5.77 gph
Ball Material - Pumps
TFE
Item
Chemical Metering Pump
Includes
Adaptor
Motor RPM
10 to 120
Body Material
Metal
Item - Chemical Metering Pumps
Chemical Metering Pump
Pump Type
Peristaltic
Min. Flow Rate
0.005 mL/min
Tubing Material - Peristaltic Pumps
Sold Separately
Ball Material
TFE
Reproducibility
+/-5.0%
Hz
60
Number of Feeds
0
Tubing Material
Sold Separately
Standards
EN 61010-1:2010, EN 61326-1:2013, EN IEC 63000:2018, EN ISO 12100:2010
Phase
Single
Roller Material
TFE
Horsepower (Maximum)
1/7 hp
Media Temperature (Minimum)
-80 Degrees C
Degassing Valve Included
No
Motor Mounting Type
Insulated Drive System
Chemical Compatibility
Media Temperature (Maximum)
205 Degrees C
Flow Rate (Maximum)
138.48 gpd
Priming
Self-Priming
Frequency
60 Hz
Pressure (Maximum)
29 psi
Motor Speed (Maximum)
120 RPM
Flow Rate (Minimum)
0.01 mL/min
Nameplate Voltage
115V AC
Viscosity (Maximum)
3,500 cps

Description

Chemical Metering Pump
