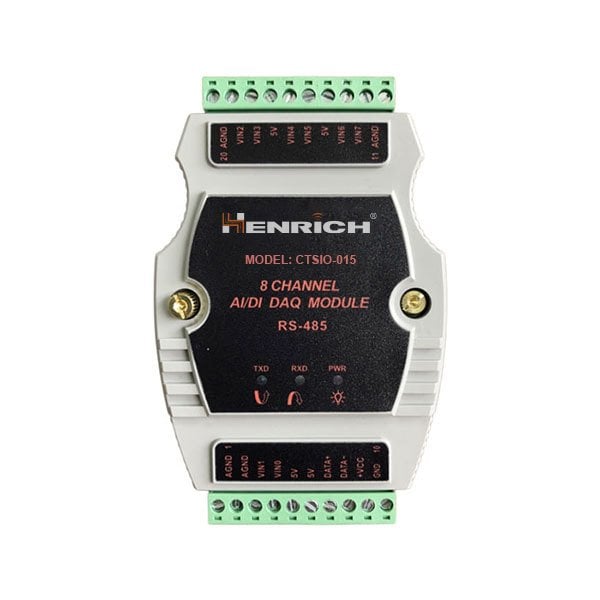

8-channel AI/DI Acquisition Module
- Mfr # CTSIO-015
- Zoro # G323786107
product price:Â
$
157.99
/ea
Free Shipping & Returns
Key Features
Relative Humidity
5% to 95 %
Lightning Surge
Power Supply: Differential Mode 1KV
Input Voltage
12V DC to 24V DC
Port Type
RS-485
Acquisition Accuracy
0.005
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CTSIO-015
- Zoro #
- G323786107
- UPC #
- -
- Country of Origin
- China
Dimensions
- BandWidth
- 25Hz (All Channels)
Details
- Relative Humidity
- 5% to 95 %
- Lightning Surge
- Power Supply: Differential Mode 1KV
- Input Voltage
- 12V DC to 24V DC
- Port Type
- RS-485
- Acquisition Accuracy
- 0.005
- Operating Temp.
- -40 Degrees to 85 Degrees C
- Baud Rate
- 1200 ~ 115200bps
- Input Channel
- Single-ended 8 Channels (Differential 4 Channels)
- Input Impedance
- Voltage 50KΩ, Current 120Ω
- Communication Protocol
- MODBUS-RTU
Description
8-channel AI/DI Acquisition Module, 8AI / 8DI: (Differential-input Voltage +/-10V, Single Terminal Input 0-10V, Current 0-20mA) *8 / Dry *8, Operating Temperature: -40 ~ +85 DegC, Acquisition Accuracy: 0.5%, Baud Rate: 1200-11520 bps, Lightning Surge: Power Supply: Differential Mode 1KV, RS-485: 600W Protection, Measuring Range: Differential Input: Voltage +/-10V
