Shop HESSAIRE

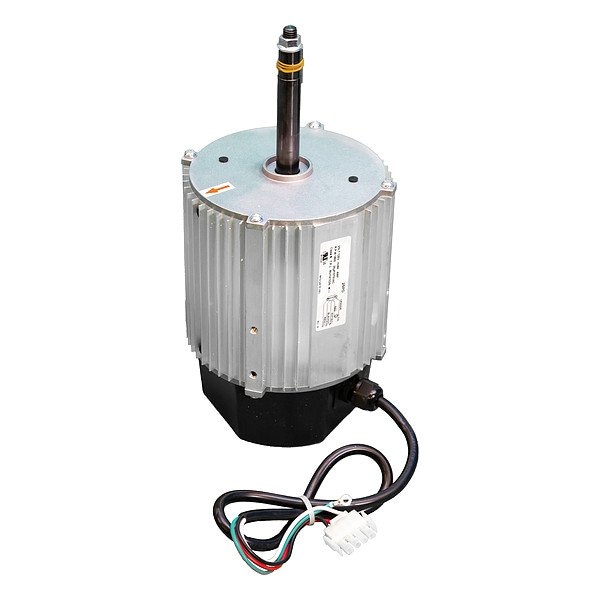

Motor, 1/2 hp, OEM Replacement Brand: 874L39 Replacement For: B300-4V2

  • Mfr # B300-4V2

  • Zoro # G515830038

product price:
$
84.99
/ea

Key Features

Frame
48
HP
1/2 hp
Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Shaft Rotation
CW/CCW
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B300-4V2
Zoro #
G515830038
UPC #
-
Country of Origin
China

Dimensions

Shaft Dia.
5/8 in
Shaft Length
4 5/16 in
Length Less Shaft
6 in
Manufacturers Warranty Length
1 yr
Overall Length
11 in
Frame Size
48
Shaft Diameter
5/8 in
Wire Rope Length
11 in
Length
11 in

Details

Frame
48
HP
1/2 hp
Item
Evaporative Cooler Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Shaft Rotation
CW/CCW
Nameplate RPM
1,600
Number of Shafts
1
OEM Replacement Brand
874L39
Voltage
115V AC
Motor Bearings
Ball
Replacement For
B300-4V2
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Full Load Amps
5.2/3.3 A
Capacitor Required
Capacitor Included
Standards
UL Recognized US and Canada
Motor Shaft Design
Threaded
Motor Service Factor
1
Application
Evaporative Cooler
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
Vertical Shaft Down
Weight
22 lb
Compatible Brand
Hessaire
Conduit Box Location
Interior
Nominal Efficiency
0.78 %
Compatible Manufacturer Model Number
DX4800D
Motor Frame Material
Aluminum
Extended Thru-Bolts
No
Shaft Design
Threaded
Duty
Continuous
Insulation Class
B
Compatible Manufacturer Part Number
DX4800D
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Manufacturers Warranty
1 yr
Motor Enclosure Type
Totally Enclosed Air-Over
Sub Application
Evaporative Cooler
Frame Material
Aluminum
Nameplate Service Factor @ 60 Hz
1
Mounting Position
Vertical Shaft Down
Product Type
Evaporative Cooler Motor
Full Load Current @ 60 Hz
5.2/3.3 A

Description

Evaporative Cooler Motor, Not Applicable Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,600 RPM, No. of Speeds Not Applicable, Voltage 115V AC, Full Load Amps 5.2/3.3 A, 48 Frame, OEM Replacement Brand 874L39, Replacement For B300-4V2, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Not Applicable, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
