Hoffman

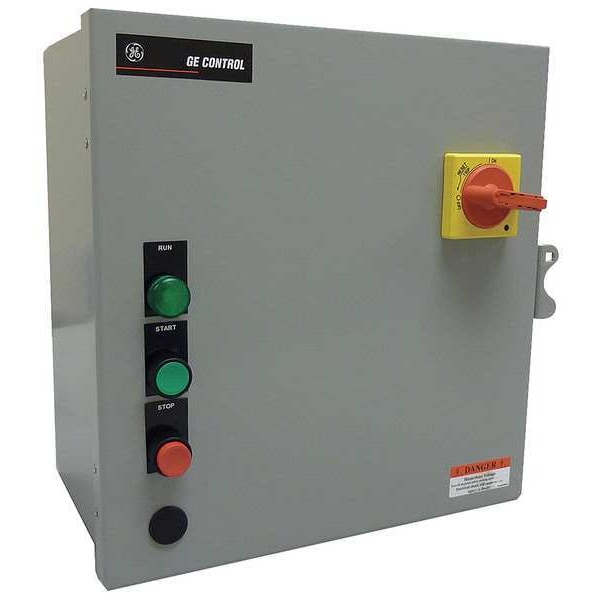

IEC Combo Str, 6.3 - 10 A, 120V Coil, 1 Enc

product price: $1,222.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Overload Relay Amp Setting 6.3 to 10A
  • Coil Volts 120V AC
  • Amps AC 6.3 to 10
  • Enclosure NEMA Rating 1
  • Operator Push Button
See all product information

Product Information

Dimensions

Width 14.54 in
Height 15.39 in
Overall Height 15.39 in
Overall Width 14.54 in

Details

Item IEC Combination Starter
Overload Relay Amp Setting 6.3 to 10A
Coil Volts 120V AC
Amps AC 6.3 to 10
Enclosure NEMA Rating 1
Operator Push Button
Short Circuit Protection Circuit Breaker
Trip Class 10
Pilot Light Yes
Control Transformer Yes
Auxiliary Contact Form 1NO/1NC
Operator Function Start/Stop
Control Transformer Voltage 208V AC, 240V AC, 480V AC Primary, 120V AC Secondary
Standards CSA, UL Listed
HP @ 3 Phase - 480V 5 hp
HP @ 3 Phase - 240V 3 hp
Hz 50/60
Number of Poles 3
Horsepower @ Three Phase - 600V AC 10 hp
Phase Three
Overload Protection Type Thermal
Number of Terminals 6
Horsepower @ Single Phase - 240V AC 1 1/2 hp
Horsepower @ Three Phase - 240V AC 3 hp
Terminal Connection Type Screw Terminals
Auxiliary Contact Module Capacity 2
Horsepower @ Three Phase - 480V AC 5 hp
Maximum Overload Relay Current Setting 10 A
Minimum Overload Relay Current Setting 6.3 A
Maximum Voltage Rating 600V AC
Includes Control Transformer Yes
Reversing Capability Non-Reversing
Horsepower @ Three Phase - 208V AC 3 hp
Includes Auxiliary Contacts Yes
NEMA Enclosure Rating 1
Current AC 10 A
Number of Auxillary Contacts 2
Starter Style IEC
Includes Pilot Light Yes
Frequency 50/60 Hz
Horsepower @ Single Phase - 120V AC 1/2 hp
Coil Voltage 120V AC

Description

IEC Combination Starter, Coil Voltage 120V AC, Current AC 10 A, Horsepower @ Three Phase - 600V AC 10 hp, Maximum Voltage Rating 600V AC, NEMA Enclosure Rating 1, NEMA Size Not Applicable, Hazardous Location Specification Not Applicable, Starter Style IEC, Reversing Capability Non-Reversing, Auxiliary Contact Form 1NO/1NC, Short Circuit Protection Circuit Breaker, Includes Control Transformer Yes, Trip Class 10, Horsepower @ Three Phase - 208V AC 3 hp
