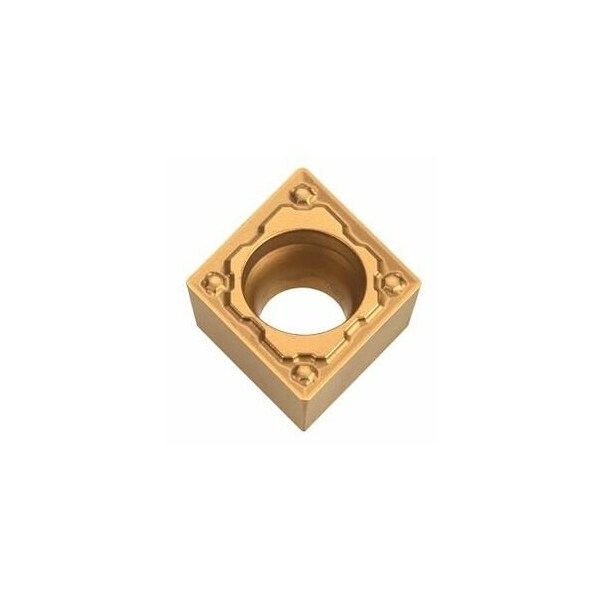

Carbide Turning Insert, Diamond, CCMT32.51 / CCMT09T304, for Stainless Steel
Mfr # 260211 HBT130
Zoro # G114821451
product price:Â $10.75
/ea
Sold in multiples of 10 for $107.50
Key Features
Grade
HBT130
Insert Application
Roughing-Finishing
Insert Shape
80 Degrees Diamond
Inscribed Circle
3
Coating
TiCN
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260211 HBT130
Zoro #
G114821451
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Insert Thickness
2.5 mm
Max. Cutting Depth (ap max)
3.25 mm
Corner Radius
0.4 mm
Cutting Depth
0.3 mm
Min. Cutting Depth (ap min)
0.25 mm
Details
Grade
HBT130
Insert Application
Roughing-Finishing
Insert Shape
80 Degrees Diamond
Inscribed Circle
3
Coating
TiCN
No. of Edges
2
Insert Material
Carbide
Item
Indexable Insert for Turning
ISO Number
CCMT 09T304
Workpiece Material
Stainless Steel
Insert Style
CCMT
Cutting Conditions
Slightly Interrupted
Chip-Breaker
MM
Description
CCMT 09T304 HBT130 Grade: HBT130 Chip breaker: MM Cutting depth ap: 0.3 3 mm Feed f: 0.05 0.35 mm/rev. Cutting speed vc main application: 50 200 m/min
