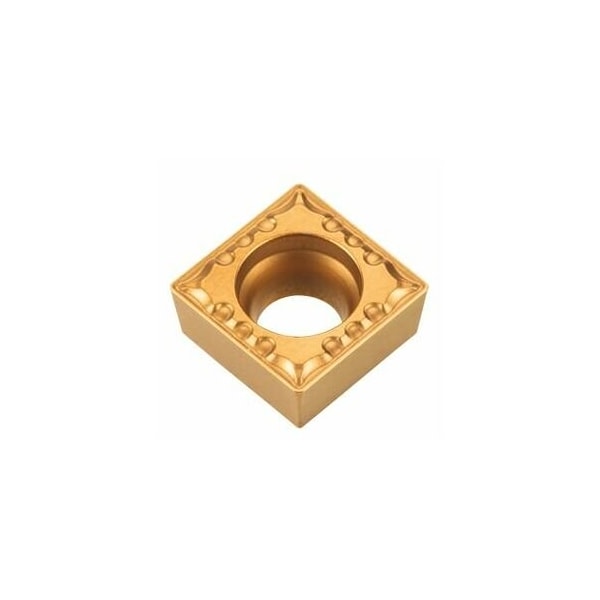

Carbide Turning Insert, Square, SCMT32.51 / SCMT09T304, for Stainless Steel
Mfr # 260758 HBT130
Zoro # G214821474
product price:Â $10.75
/ea
Sold in multiples of 10 for $107.50
Key Features
Insert Shape
Square
Insert Style
SCMT
Inscribed Circle
3
Chip-Breaker
Stainless Steel
Grade
HBT130
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 260758 HBT130
- Zoro #
- G214821474
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Corner Radius
- 0.4 mm
- Insert Thickness
- 2.5 mm
- Min. Cutting Depth (ap min)
- 0.25 mm
- Cutting Depth
- 0.1 mm
- Max. Cutting Depth (ap max)
- 3.25 mm
Details
- Item
- Indexable Insert for Turning
- Insert Shape
- Square
- Insert Style
- SCMT
- Inscribed Circle
- 3
- Chip-Breaker
- Stainless Steel
- Grade
- HBT130
- Insert Material
- Carbide
- Insert Application
- Finishing
- ISO Number
- SCMT 09T304
- Cutting Conditions
- Slightly Interrupted
- Workpiece Material
- Stainless Steel
- Coating
- TiCN
- No. of Edges
- 4
Description
SCMT 09T304 HBT130 Corner radius: 0.4 mm Grade: HBT130 Chip breaker: M Cutting depth ap: 0.1 1 mm Feed f: 0.05 0.2 mm/rev. Cutting speed vc main application: 60 220 m/min
