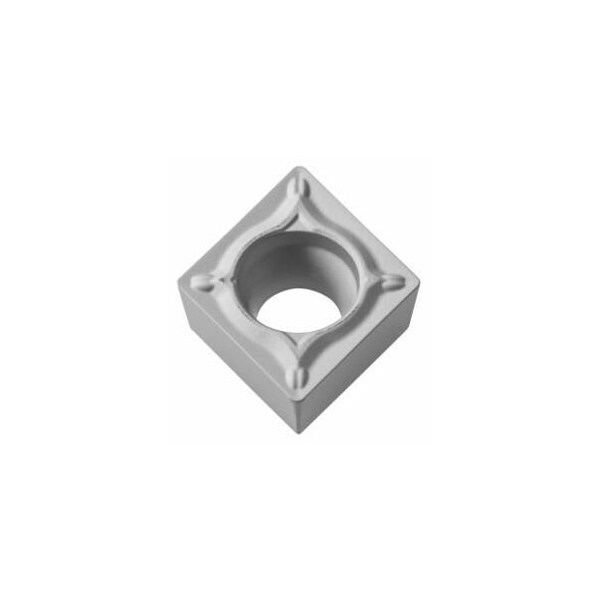

Carbide Turning Insert, Diamond, CC.T060202, for Steel
Mfr # 260084 HBT020
Zoro # G214822532
product price: $9.45
/eaSold in multiples of 10 for $94.50
Key Features
Workpiece Material
Steel
ISO Number
CC.T 060202
Coating
TiCN
No. of Edges
2
Cutting Depth
0.4 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260084 HBT020
Zoro #
G214822532
UPC #
-
Country of Origin
Japan
Dimensions
Cutting Depth
0.4 mm
Insert Size
60202
Corner Radius
0.4 mm
Min. Cutting Depth (ap min)
0.25 mm
Insert Thickness
1.5 mm
Max. Cutting Depth (ap max)
2 mm
Details
Workpiece Material
Steel
Item
Indexable Insert for Turning
ISO Number
CC.T 060202
Coating
TiCN
No. of Edges
2
Cutting Conditions
Slightly Interrupted
Inscribed Circle
2
Chip-Breaker
PF
Insert Shape
80 Degrees Diamond
Insert Application
Finishing
Insert Style
CC.T
Insert Material
Carbide
Grade
HBT020
Description
CCMT 060204 HBT020 Grade: HBT020 Chip breaker: PF Cutting depth ap: 0.4 2 mm Feed f: 0.1 0.3 mm/rev. Cutting speed vc main application: 120 330 m/min
