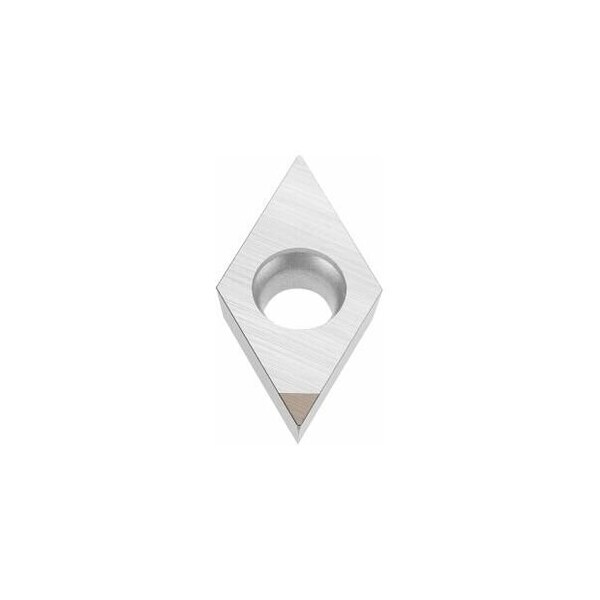

CBN Turning Insert, Diamond, DCMW11T302, for Cast Iron
Mfr # 265766 M
Zoro # G414821472
product price:Â $33.65
/eaKey Features
Insert Shape
55 Degrees Diamond
Insert Style
DCMW
Inscribed Circle
3
Insert Size
11T302
Grade
BUX220
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
265766 M
Zoro #
G414821472
UPC #
-
Country of Origin
Germany
Dimensions
Insert Size
11T302
Corner Radius
0.2 mm
Max. Cutting Depth (ap max)
0.5 mm
Cutting Depth
0.1 mm
Insert Thickness
2.5 mm
Min. Cutting Depth (ap min)
0.1 mm
Details
Item
Indexable Insert for Turning
Insert Shape
55 Degrees Diamond
Insert Style
DCMW
Inscribed Circle
3
Grade
BUX220
Insert Material
CBN
Insert Application
Finishing
ISO Number
DCMW 11T302
Cutting Conditions
Continuous
Cutting Edge Version
Stainless Steel
No. of Edges
1
Description
Disposable insert. Single cutting edge. Note: Further indexable insert shapes, sizes and corner radii available on request. Grade: BUX220 Cutting edge M Cutting depth ap: 0.1 0.5 mm Feed f: 0.1 0.2 mm/rev. Cutting speed vc main application: 80 200 m/min
