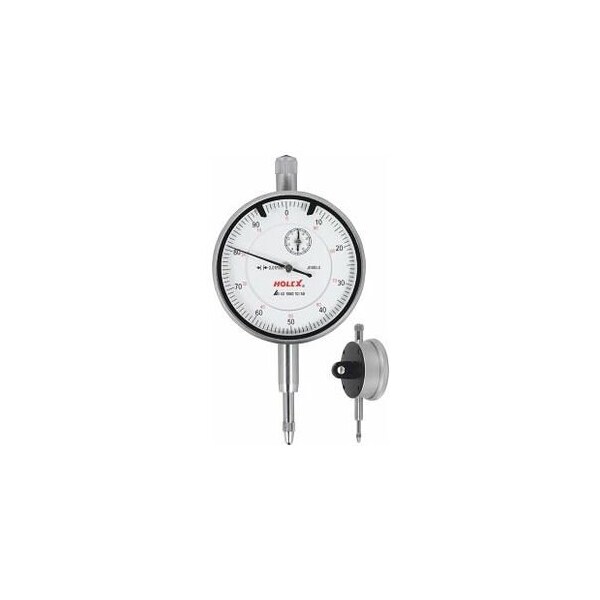

Dial Indicator, Lug Back, Measuring Range / Body Diameter: 10/58Bmm
Mfr # 431980 10/58B
Zoro # G014556835
product price:Â $52.49
/eaKey Features
Graduations
0.01 mm
Standards
DIN 878
Measuring Range
10 mm
Gauging Force
0.4 N
Reading per Pointer Revolution
1 mm
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 431980 10/58B
- Zoro #
- G014556835
- UPC #
- -
- Country of Origin
- China
Dimensions
- Body Dia.
- 58 mm
Details
- Graduations
- 0.01 mm
- Item
- dial gauge
- Standards
- DIN 878
- Measuring Range
- 10 mm
- Gauging Force
- 0.4 N
- Reading per Pointer Revolution
- 1 mm
- Packaging
- sturdy box
- Loop on the back of the dial indicator
- yes
- Measurement Technology
- Analogue
- Max. Permissible Error
- 15 µm
Description
Dimensions to DIN EN ISO 463, issue June 2006. Precision dial indicators with metal housing, clamping shank Diameter 8 mm h6, hardened and ground. Outer ring of dial face can be rotated to zero the dial. Central pointer for 1/100 mm reading, small pointer on sub-scale for 1 mm reading. Outer ring with 2 adjustable tolerance pointers. Optional extras: Special contact points No. 434900, 434910, 434915.
