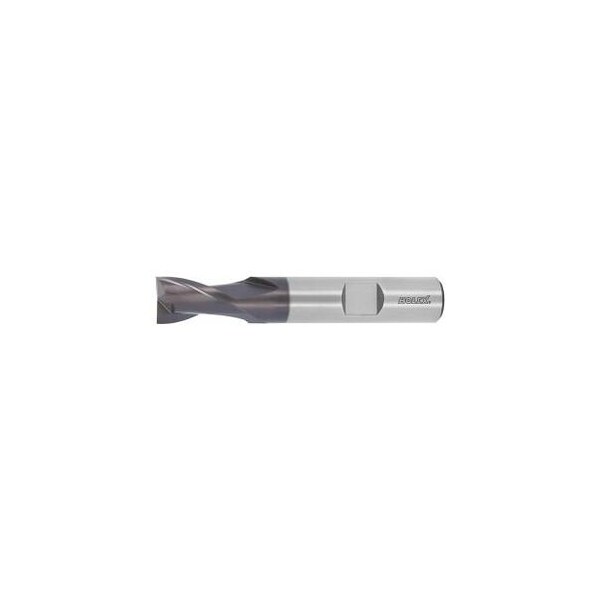

HSS-Co8 End Mill, TiAlN Coated, 5 mm
Mfr # 191070 5
Zoro # G614378059
product price: $21.55
/eaKey Features
Number of Effective Teeth (Peripheral Side)
2
Correction Factor Fz
1.25
Corner Chamfer Angle
90 Degrees
Shank Tolerance
h6
Type of Product
Milling cutter
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
191070 5
Zoro #
G614378059
UPC #
-
Country of Origin
China
Dimensions
Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Slot Milling From Solid
5 mm
Maximum Cutting Depth Ap Max When Side Milling
8 mm
Min. Cutting Depth
0.01 mm
Milling Diameter
5 mm
Overall Length
52 mm
Shank Dia.
6 mm
Length of Cut
8 mm
Details
Number of Effective Teeth (Peripheral Side)
2
Correction Factor Fz
1.25
Corner Chamfer Angle
90 Degrees
Shank Tolerance
h6
Type of Product
Milling cutter
Type
N
Color Ring
without
Coolant Through
no
Standard
DIN 327 D
End Mill Material
Cobalt High Speed Steel
Finish
TiAlN
End Mill Style
Square
Helix Angle
30 Degrees
Shank Type
DIN 1835 B to h6
Cutting Direction
horizontal, oblique and vertical
Description
Center cutting edge geometry for plunging. Economy version. Application: For milling keyways slots or pockets from the Center of the component.
