Shop HOLEX

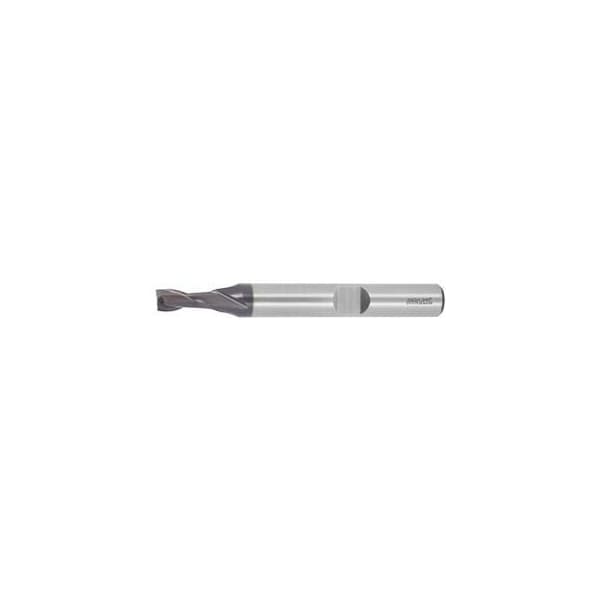

HSS-Co8 End Mill, TiAlN Coated, 7 mm

  • Mfr # 191070 7

  • Zoro # G714377976

product price:
$
27.67
/ea

Key Features

Milling Diameter
7 mm
Length of Cut
10 mm
Overall Length
60 mm
Shank Dia.
10 mm
Helix Angle
30 deg
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
191070 7
Zoro #
G714377976
UPC #
-
Country of Origin
China

Dimensions

Milling Diameter
7 mm
Length of Cut
10 mm
Overall Length
60 mm
Shank Dia.
10 mm
Maximum Cutting Depth Ap Max When Side Milling
10 mm
Tolerance Nominal Diameter
e8
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
7 mm

Details

Helix Angle
30 deg
Shank Type
DIN 1835 B to h6
End Mill Material
High Speed Steel
Standard
DIN 327 D
Shank Tolerance
h6
Number of Effective Teeth (Peripheral Side)
2
Color Ring
without
Corner Chamfer Angle
90 Degrees
Correction Factor Fz
1.25
Type of Product
Milling cutter
Coolant Through
no
Type
N
Cutting Direction
horizontal, oblique and vertical
End Mill Style
Square
Finish
TiAlN

Description

Center cutting edge geometry for plunging. Economy version. Application: For milling keyways slots or pockets from the Center of the component.
