  11. HSS-E Through Hole Machine Tap, 3/8-24 Tap Thread Size, TiN Coated
Shop All Extension Taps
Holex

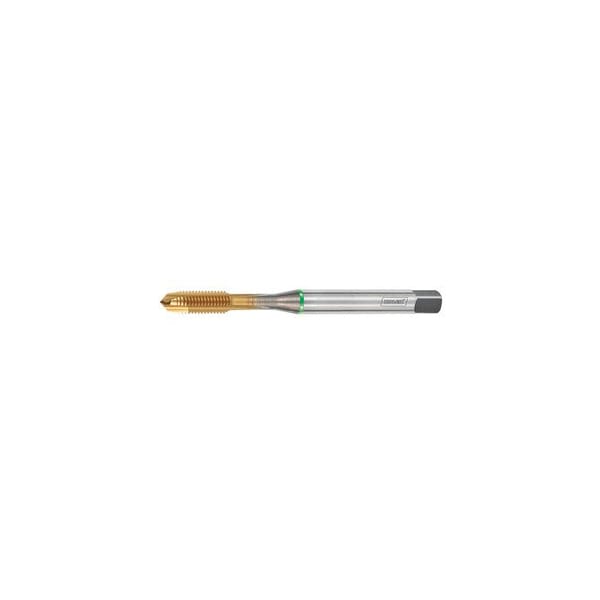

HSS-E Through Hole Machine Tap, 3/8-24 Tap Thread Size, TiN Coated

product price: $19.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Shank Dia. 7 mm
  • Tap Material HSS E
  • Standard DIN 376
  • Overall Length 90 mm
  • Thread Direction right-hand
See all product information

Product Information

  • Brand Holex
  • MFR # 133425 3/8-24
  • Zoro # G509574368
  • UPC #
    4062406374334
  • Country of Origin Italy
  • Category Extension Taps

Dimensions

Shank Dia. 7 mm
Overall Length 90 mm
Thread Length 28.59 mm
Tapping Hole Diameter 8.5 mm
Thread Diameter 9.53 mm
Diameter 9.53 mm
Thread Size 3/8-24 UNF
Shank Square Size 5.5 mm
Pre-Drill Diameter 8.5 mm

Details

Item Tap
Tap Material HSS E
Standard DIN 376
Thread Direction right-hand
Application up to 3×D for through holes
Thread type UNF
Shank Type Plain Shank with h9
Coolant Through No
Taper Lead Angle 8 Degrees
Tolerance Class 2B
Series HOLEX Pro Tap
Finish TiN
Number of Teeth 3
For Hole Type Through Hole
Threads per Inch 24
Tool Type Machine Tap For Dynamic Machining
Flank Angle 60 Degrees
Thread Pitch 1.058 mm
Taper Lead Form B

Description

HOLEX Pro Tap general-purpose tap. Sturdy design suitable for a wide spectrum of materials. Improved HSS-E tool material with low-friction TiN coating. Application: For UNF unified fine threads ASME - B1.1. Thread type: UNF Tool material: HSS E Standard: DIN 376 Threads per inch: 24 Thread dia : 9.53 mm Overall length L: 90 mm Shank dia Ds: 7 mm Shank square : 5.5 mm Tapping hole dia : 8.5 mm
