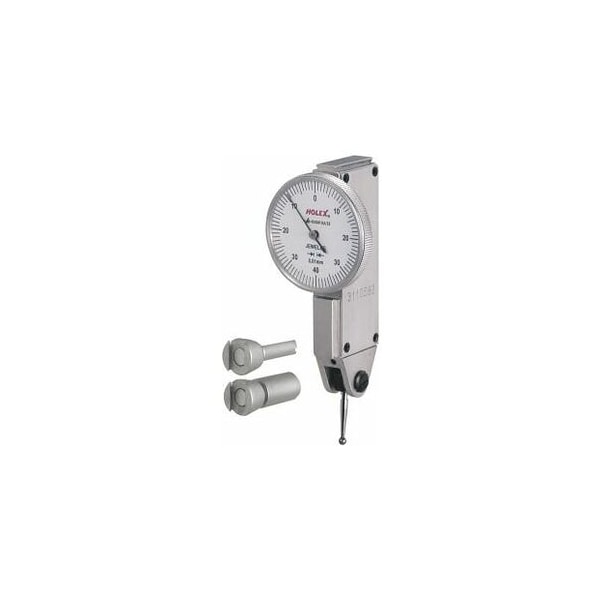

Lever Dial Indicator, Contact Point Length: 13.5 mm, Measuring Range/Body Diameter: 0.4/29 mm
- Mfr # 436341 0,4/29
- Zoro # G014554756
product price:Â
$
101.99
/ea
Free Shipping & Returns
Key Features
Contact Point Length
13.5 mm
Standards
DIN 2270
Clamping Shank Dia. (h6)
8 mm
Scale Divisions
0.01 mm
Pivot Range
2×110 Degrees
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 436341 0,4/29
- Zoro #
- G014554756
- UPC #
- -
- Country of Origin
- China
Dimensions
- Contact Point Length
- 13.5 mm
- Size
- 0.4/29 mm
- Clamping Shank Dia. (h6)
- 8 mm
- Body Dia.
- 29 mm
- Measurement Ball Diameter
- 2 mm
Details
- Standards
- DIN 2270
- Item
- Lever dial indicator
- Scale Divisions
- 0.01 mm
- Pivot Range
- 2×110 Degrees
- Measuring Range per Direction
- 0.4 mm
- Gauging Force
- 0.15 N
- Packaging
- sturdy box
- Measurement Technology
- analogue
Description
High-precision lever dial indicator with jewel-mounted mechanism in handy, robust design. Housing and dovetail block are of one piece, which means that mounting is particularly rigid. Corrosion protection due to matte chrome-plated housing. With 1/100 reading. HOLEX Economy version with carbide measurement ball. Application: As an accurate dial bore gage for testing variations from nominal size, testing concentricity, internal measurements, testing of parallelism, and flatness as well as for aligning components. Supplied with: Additional clamping spigot Diameter 4 mm. Clamping spigot Diameter 8 mm.
