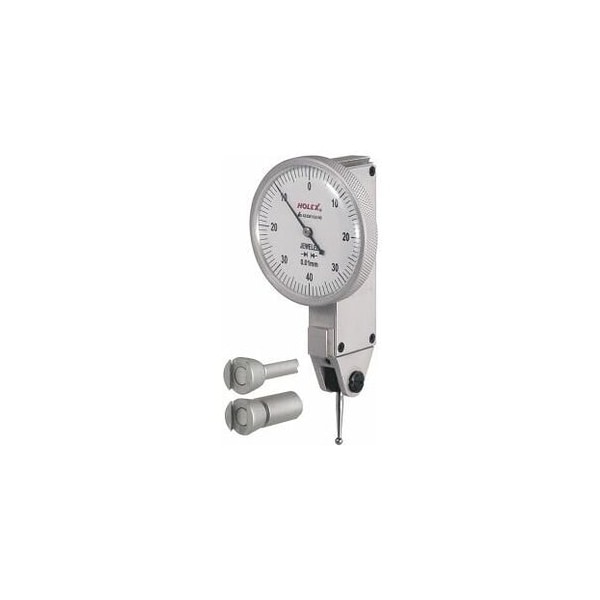

Lever Dial Indicator, Contact Point Length: 13.5 mm, Measuring Range/Body Diameter: 0.4/40 mm
Mfr # 436341 0,4/40
Zoro # G114554755
product price:Â $109.99
/ea
Free Shipping & Returns
Key Features
Contact Point Length
13.5 mm
Standards
DIN 2270
Clamping Shank Dia. (h6)
8 mm
Body Dia.
40 mm
Measurement Ball Diameter
2 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 436341 0,4/40
- Zoro #
- G114554755
- UPC #
- -
- Country of Origin
- China
Dimensions
- Contact Point Length
- 13.5 mm
- Size
- 0.4/40 mm
- Clamping Shank Dia. (h6)
- 8 mm
- Body Dia.
- 40 mm
- Measurement Ball Diameter
- 2 mm
Details
- Standards
- DIN 2270
- Item
- Lever dial indicator
- Gauging Force
- 0.15 N
- Packaging
- sturdy box
- Measuring Range per Direction
- 0.4 mm
- Pivot Range
- 2×110 Degrees
- Scale Divisions
- 0.01 mm
- Measurement Technology
- analogue
Description
High-precision lever dial indicator with jewel-mounted mechanism, in handy, robust design. Housing and dovetail block are of one piece, which means that mounting is particularly rigid. Corrosion protection due to matte chrome-plated housing. With 1/100 reading. HOLEX Economy version with carbide measurement ball. Application: As an accurate dial bore gage for testing variations from nominal size, testing concentricity, internal measurements, testing of parallelism, and flatness as well as for aligning components. Supplied with: Additional clamping spigot Diameter 4 mm. Clamping spigot Diameter 8 mm.
