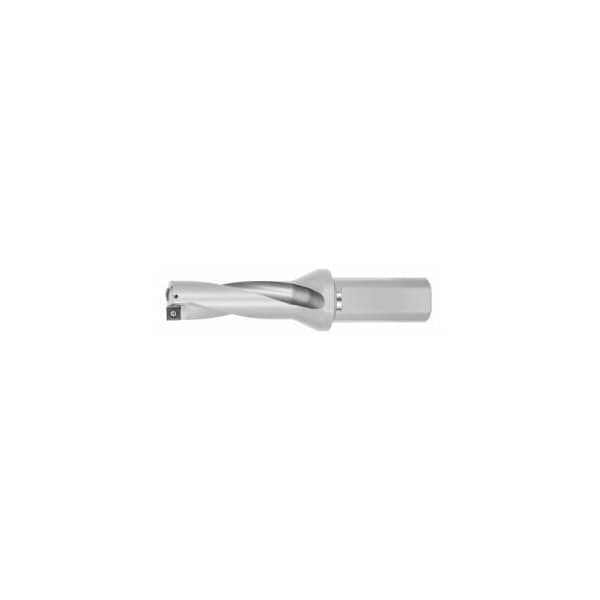

Pro Drill Indexable Drill, 3XD, Diameter: 37 mm
Mfr # 235005 37
Zoro # G515355081
product price:Â
$
474.99
/ea
Free Shipping & Returns
Key Features
Diameter
37 mm
Number of Inserts Required
1
Series
HiPer-Drill
Coating
TiAlN
Point Angle
160 Deg
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 235005 37
- Zoro #
- G515355081
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Diameter
- 37 mm
- Base Body Size
- 16 mm
- Size
- 16.1 mm
Details
- Item
- Cutter insert for boring
- Number of Inserts Required
- 1
- Series
- HiPer-Drill
- Coating
- TiAlN
- Point Angle
- 160 Deg
- Semi-Standard
- Yes
- Grade
- HB3040
- No. of Cutting Edges
- 2
- Application
- Drilling through a stack, Limited oblique spot drilling, limited drilling through a stack
- Material
- Carbide
Description
HOLEX Pro Drill indexable drills combine cost efficiency with technically fully developed capability. For use up to 4xD in challenging drilling applications. Bore tolerance: -0.1 / +0.25 mm Application: With indexable inserts No. 235030 235082. Both SOMT inserts for the outer insert seat and also XOMT inserts for the inner insert seat are required. Supplied with: With insert screws supplied without indexable inserts. Overhang LA: 145 mm Shank 0 Ds: 40 mm Shank length Ls: 70 mm Maximum adjustment limit Vmax: 0.35 mm ISO code indexable insert: SOMT13M510 / XOMT13M506 Pack of insert screws: 232980 6 TX15-3Nm
