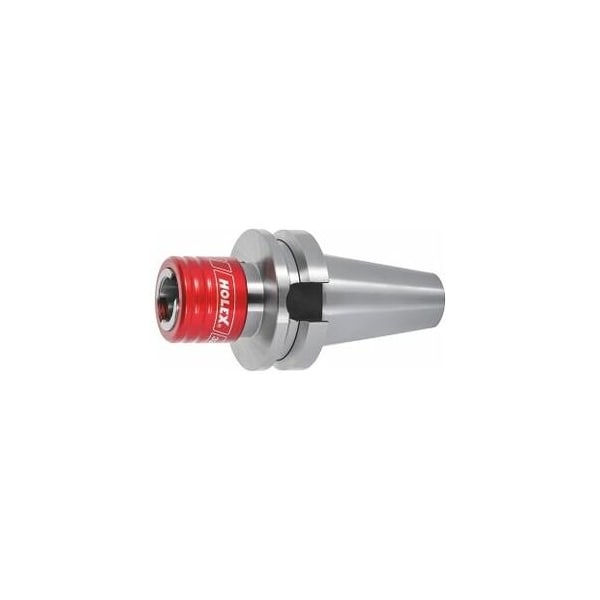

Quick-Change Tapping Chuck, BT 40, Tapping Range: M6-20
Mfr # 334665 M6-20
Zoro # G514777006
product price:Â
$
303.99
/ea
Free Shipping & Returns
Key Features
Internal Dia.
31 mm
Tapping Range
M6 - M20
Length Compensation By Compression
12.5 mm
Outside Dia.
55 mm
Projection
100 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 334665 M6-20
- Zoro #
- G514777006
- UPC #
- -
- Country of Origin
- India
Dimensions
- Internal Dia.
- 31 mm
- Length Compensation By Compression
- 12.5 mm
- Outside Dia.
- 55 mm
- Taper Size
- BT40
- Length Compensation By Tension
- 12.5 mm
Details
- Tapping Range
- M6 - M20
- Item
- Tapping head
- Projection
- 100 mm
Description
Compact design, with flexible length compensation by compression and tension. Adjustable lead-in pressures for different materials and taps. Application: To produce threads that are true to gage. For right-hand and left-hand thread. For NC machines and machining Centers. Optional extras: See No. 335420 335660 for quick-change tapping collets. Pull studs PS No. 308600 308806. Pull stud wrenches No. 308820, 308835. Note: Quick-change tapping heads in other shank types size M14 M33 available on request. Quick-change tapping heads not suitable for internal coolant supply. Arbor standard: ISO 7388-2 Length compensation by compression: 12.5 mm Length compensation by tension: 12.5 mm External Dia D: 55 mm Internal Dia D1: 31 mm Overhang dimension A: 100 mm
