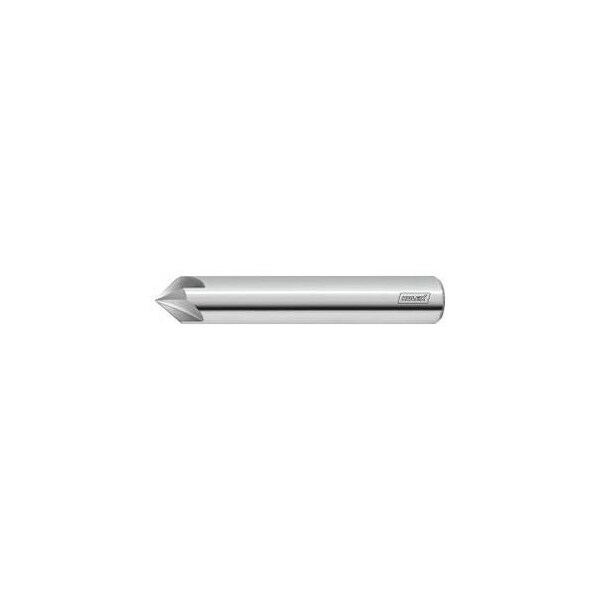

Solid Carbide Deburring Mill, 90 Deg, Uncoated, 4 mm
Mfr # 208097 4
Zoro # G114423228
product price: $20.15
/eaKey Features
Type
N
Material
Carbide
Dia. (In.)
0.1575
Shank Diameter
4 mm
Overall Length
50 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
208097 4
Zoro #
G114423228
UPC #
-
Country of Origin
Germany
Dimensions
Dia. (In.)
0.1575
Shank Diameter
4 mm
Overall Length
50 mm
Dimension S
2.8 mm
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Side Milling
2.8 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
2.8 mm
Tolerance Nominal Diameter
h6
Description
Tolerance: Dimension S = ±0.1 mm, point angle ±10 arc minutes. Application: Perfectly suitable for chamfering and deburring component edges and for contouring applications. No. of teeth Z: 4 Shank: DIN 6535 HA with h6 Chamfer mill: 45 degrees No. of teeth Z: 4 Dimension S: 2.8 mm Overall length L: 50 mm Shank Dia. Ds: 4 mm Feed fz in steel < 900 N/mm2: 0.02 mm
