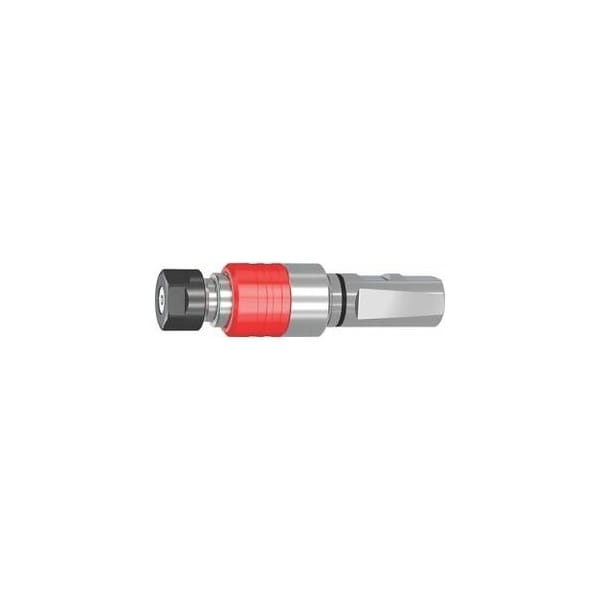

Tapping chuck, ER Synchro, Shank Diameter: 25 mm, for ER Collets: 16
Mfr # 338198 16
Zoro # G214777238
product price: $291.99
/ea
Free Shipping & Returns
Key Features
Dia. (In.)
28 mm
Coolant Through
Yes, With Max. 50 Bar
Tapping Range
M4 − M12
Shank Dia.
25 mm
Outside Dia.
34 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
338198 16
Zoro #
G214777238
UPC #
-
Country of Origin
China
Dimensions
Dia. (In.)
28 mm
Shank Dia.
25 mm
Outside Dia.
34 mm
Length Compensation By Compression
0.5 mm
Length Compensation By Tension
0.5 mm
Details
Item
Tapping head
Coolant Through
Yes, With Max. 50 Bar
Tapping Range
M4 − M12
Projection
75 mm
Standards
DIN 1835 B, E
Description
With minimum length adjustment MLA, by means of a damping element. Internal coolant supply up to 50 bar. Increases the tool life of taps/thread formers. Application: On machining Centers with synchronised spindles. For compensating the difference in pitch between tap and synchronised spindle. For compensating the pitch tolerances of taps. Optional extras: ER collets for machine taps No. 309399 and 309447. Note: Do not degrease the synchro tapping chuck. Through-coolant: yes, with max. 50 bar Tapping range: M4 M12 Length compensation by compression: 0.5 mm Length compensation by tension: 0.5 mm External Dia D: 34 mm Internal Dia D1: 28 mm Overhang dimension A: 75 mm
