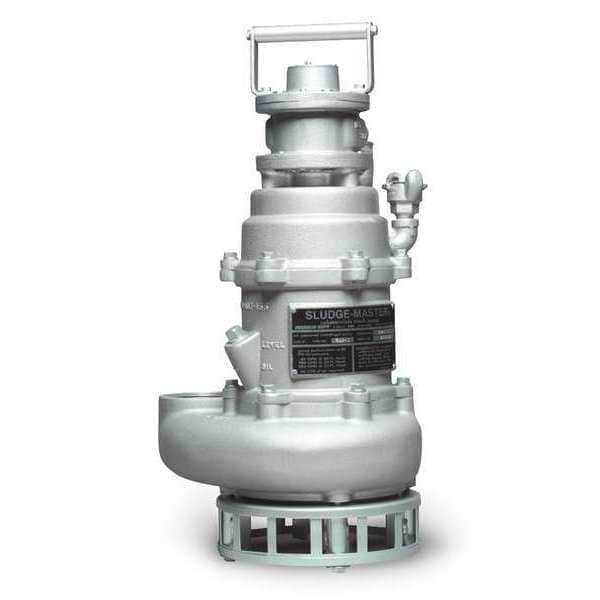

3 in. Air-Operated Centrifugal Pump, High Flow

  • Mfr # SMA3,6AM1.

  • Zoro # G0309601

product price:  $5,947.99
/ea
Free Shipping & Returns

Key Features

HP
2 1/2 hp
Flow Rate @ 10 Ft. of Head
275.0 gpm
Max. Diameter Solids
1 1/2 in
Impeller Material
Cast Iron
Max. Head
64.7 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SMA3,6AM1.
Zoro #
G0309601
UPC #
-
Country of Origin
United States

Dimensions

Max. Diameter Solids
1 1/2 in
Width
12 1/5"
Length
13"
Height
23 1/2"
Diameter
13"
Manufacturers Warranty Length
1 yr
Max. Dia. Solids
1-1/2"
Overall Length
13 in
Overall Height
23 1/2 in
Body Dia.
13 in
Inlet Dia.
1/2 in
Discharge Dia.
3 in
Discharge Diameter
3 in
Inlet Diameter
1/2 in
Solids Diameter - Maximum
1 1/2 in
Body Diameter
13 in
Wire Rope Length
13 in

Details

Item
Pneumatic Utility Pump
HP
2 1/2 hp
Flow Rate @ 10 Ft. of Head
275.0 gpm
Impeller Material
Cast Iron
Max. Head
64.7 ft
Inlet
1/2 in NPTF
Agency Compliance
CE
GPM of Water @ 15 Ft. of Head
240
Motor RPM
3000
GPM of Water @ 45 Ft. of Head
70
GPM of Water @ 30 Ft. of Head
150
Max. Liquid Temp.
160 Degrees F
GPM of Water @ 35 Ft. of Head
125
Housing Material
Aluminum
GPM of Water @ 10 Ft. of Head
275
Shaft Seal
Buna N
Handle
Yes
GPM of Water @ 25 Ft. of Head
175
Base Material
Aluminum
GPM of Water @ 20 Ft. of Head
210
GPM of Water @ 60 Ft. of Head
36
GPM of Water @ 55 Ft. of Head
0
Air Inlet Pressure (PSI)
80
GPM of Water @ 50 Ft. of Head
25
Discharge NPT
3" F
GPM of Water @ 5 Ft. of Head
300
GPM of Water @ 40 Ft. of Head
100
Body Material
Aluminum
Flow Rate @ 50 Ft. of Head
25.0 gpm
RPM
3,000 RPM
Flow Rate @ 30 Ft. of Head
150.0 gpm
Discharge Gender
Female
Inlet Gender
Female
Flow Rate @ 20 Ft. of Head
210.0 gpm
Inlet Standard
NPT
Discharge Standard
NPT
Flow Rate @ 5 Ft. of Head
300.0 gpm
Air Inlet Pressure
80 psi
Flow Rate @ 15 Ft. of Head
240.0 gpm
Discharge
3 in FNPT
Liquid Temperature - Maximum
160 Degrees F
Standards
CE
Application
Dewatering, Transfer, Waste Removal
Power Source
Air
Rotation Speed - Maximum
3,000 RPM
Installation
Floor Standing
For Media Type
Antifreeze, Sludge, Sewage Water, Clear Water
Flow Rate @ 10 ft of Head
275 gpm
Feet of Head - Maximum
64.7 ft
Series
Special Duty Pump
Horsepower
2 1/2 hp
Power Source - TS Only
Air

Description

The SandPiper SMA3-6AM1 Pneumatic Utility Pump is an air-operated centrifugal pump designed for efficient fluid transfer and waste removal in commercial and industrial settings.

Key Features:

  • Powered by a 2 1/2 hp pneumatic motor with 80 psi air inlet pressure
  • Maximum flow rate of 300 gallons per minute at 5 feet of head, decreasing to 25 gpm at 50 feet
  • Maximum head of 64.7 feet for versatile pumping applications
  • Durable aluminum body and base with a cast iron impeller handling solids up to 1 1/2" diameter
  • 3-inch female NPT discharge and 1/2-inch female NPT inlet for standard piping compatibility
  • Operates up to 3,000 RPM with liquid temperature tolerance up to 160°F
  • Floor-standing design with dimensions: 13" length, 13" body diameter, and 23 1/2" height
  • Suitable for pumping antifreeze, sludge, sewage, and clear water fluids
