  15. Explosion Proof Limit Switch 2NC/1NO Horizontal Roller Lever

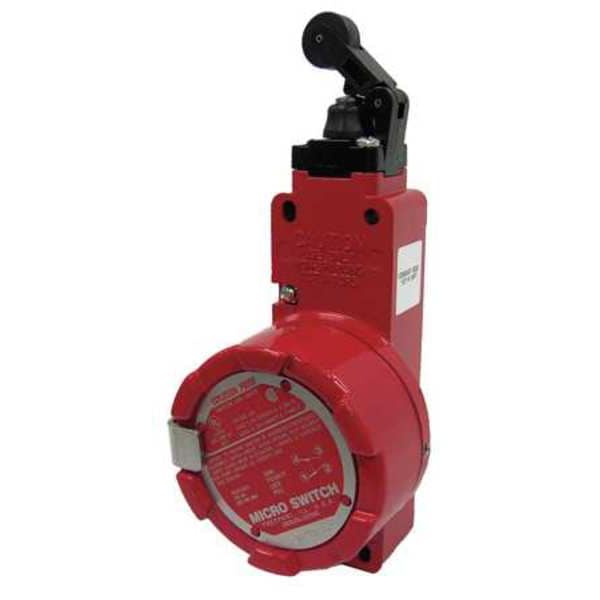

Honeywell Explosion Proof Limit Switch 2NC/1NO Horizontal Roller Lever GSXA42D - main

Explosion Proof Limit Switch 2NC/1NO Horizontal Roller Lever

  • Mfr # GSXA42D

  • Zoro # G4177327

product price: $1,505.99
/ea
Sold in multiples of 50 for $75,299.50
Item requires special delivery charges. A $2.60 per item surcharge will be applied.

Key Features

Style
Horizontal Roller Lever
Series
GSX
Actuator Length
2.57 in
AC Contact Rating
10 A
DC Contact Rating
10 A @ 250 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GSXA42D
Zoro #
G4177327
UPC #
-
Country of Origin
United States

Dimensions

Actuator Length
2.57 in
Height
6.07 in
Width
1.75 in
Depth
2.84 in
Roller Dia.
0.74"
Roller Width
0.31"
Conduit Size
1/2 in NPT
Overall Depth
2.84 in
Overall Width
1.75 in
Overall Height
6.07 in

Details

Item
Explosion Proof Limit Switch
Style
Horizontal Roller Lever
Series
GSX
AC Contact Rating
10 A
DC Contact Rating
10 A @ 250 V
Contact Form
1NO/2NC
Connection Type
Screw Terminals
IP Rating
IP67
Operating Temp. Range
-40 Degrees to 158 Degrees F
Operating Force
2.1 in-lb
Amps
10
Description/Special Features
Zinc-die cast housing, 0.5 in NPT Housing, Expected mechanical life 1 Million Operations. Top Roller Lever, 2NC1NO, BBM.
Movement
Lateral
Voltage Rating
600VAC/250VDC
Contact Material
Silver
Standards
cULus
Pre-travel
1.89 in/1.89 in
Travel
Pretravel 1.89"/1.89"
Electrical Connection
Screw Terminals
NEMA Rating
1, 12, 13, 3, 4
Wiring Entry
1/2" NPT
Arm Material
Metal
Body Material
Zinc
Head Material
Zinc Die-Cast
Actuator Style
Horizontal Roller Lever
Certification
ATEX, IEC Ex, Div. 1, & 2, Class I, Groups B, C, & D; Div. 1 & 2, Class II, Groups, E, F, & G; II 2 G, Ex d IIC T6; II 2 D, Ex d tD A21 T85C
Roller Material
Nylon
Actuator Location
Top
Features
Red Switch Body
NEMA Enclosure Rating
1, 12, 13, 4, 6
Operating Temperature - Minimum
-40 Degrees F
Pretravel
1.89 in
Hazardous Location Specification
Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G
Operating Torque
2.1 in-lb
Includes Actuating Key
No Actuating Key Included
Operating Temperature - Maximum
158 Degrees F
Circuitry Action
Slow Action
Actuator Material
Metal

Description

Explosion Proof Safety Interlock Switch, Horizontal Roller Lever, Contact Form 1NO/2NC, Actuator Length 2.57 in, Connection Type Screw Terminals, AC Contact Rating 10 A, Series GSX, DC Contact Rating 10 A @ 250 V, Solenoid Voltage Not Applicable, Height 6.07 in, Width 1.75 in, Depth 2.84 in, NEMA Rating 1, 12, 13, 3, 4, IP Rating IP67, Operating Temp. Range -40 Degrees to 158 Degrees F, Contact Material Silver, Conduit Size 1/2 in NPT, Body Material Zinc, Head Material Zinc Die-Cast
