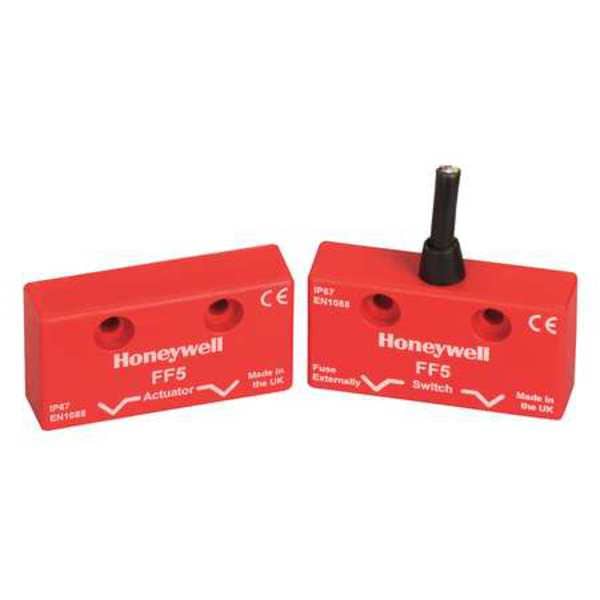

Safety Interlock Switch 2NC/1NO Magnetically Actuated
- Mfr # FF5-21-DC-10
- Zoro # G4212381
product price:Â
$
314.99
/ea
Free Shipping & Returns
Key Features
Series
FF5
DC Contact Rating
0.3 A @ 24 V
Contact Form
1NO/2NC
IP Rating
IP67
Operating Temp. Range
14 Degrees to 131 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- FF5-21-DC-10
- Zoro #
- G4212381
- UPC #
- -
- Country of Origin
- United Kingdom
- Item
- Magnetically Actuated Safety Interlock Switch
- Series
- FF5
- DC Contact Rating
- 0.3 A @ 24 V
- Contact Form
- 1NO/2NC
- IP Rating
- IP67
- Operating Temp. Range
- 14 Degrees to 131 Degrees F
- Termination Type
- Pre-Cabled
- Off Sensing Distance
- 0.67 in
- On Sensing Distance
- 0.24 in
- Standards
- CE, UL Listed
- Body Material
- ABS
- Includes
- Actuator
- Description/Special Features
- Red ABS resin filled; Vibration 50Hz to 100Hz; Shock 10G
- Operating Temperature - Maximum
- 131 Degrees F
- On Sensing Distance - Maximum
- 0.28 in
- Off Sensing Distance - Maximum
- 0.67 in
- Switch Type
- Reed Switch
- Body Style
- Rectangular
- Operating Temperature - Minimum
- -13 Degrees F
Description
Magnetically Actuated Safety Interlock Switch, Series FF5, Switch Width 2.04 in, Switch Height 1.1 in, Switch Depth 2.04 in, Contact Form 1NO/2NC, AC Contact Rating Not Applicable, DC Contact Rating 0.3 A @ 24 V, Operating Temp. Range 14 Degrees to 131 Degrees F, Termination Type Pre-Cabled, Cable Length 32.81 ft, IP Rating IP67, Actuator Width 0.53 in, Actuator Height 1.14 in, Actuator Depth 2.08 in, On Sensing Distance 0.24 in, Off Sensing Distance 0.67 in, Body Material ABS
