Shop TELEMECANIQUE SENSORS

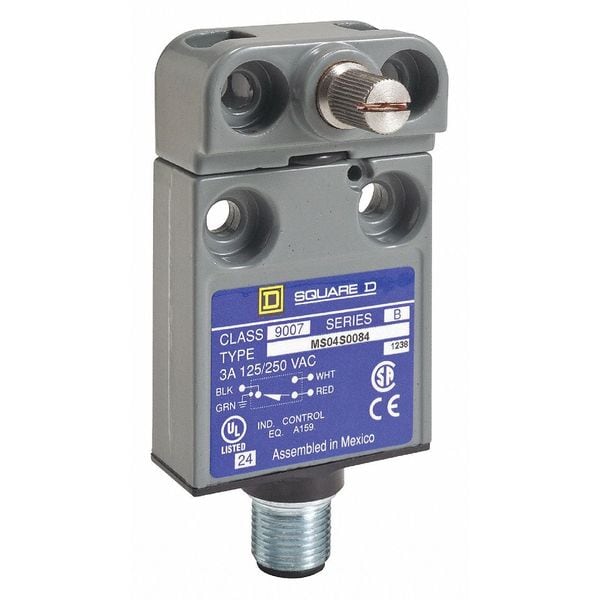

Limit Switch, No Lever, Rotary, SPDT, 6A at 240V AC, Actuator Location: Side

  • Mfr # 9007MS04S0084

  • Zoro # G2932781

product price:
$
191.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
6A at 240V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
9007MS04S0084
Zoro #
G2932781
UPC #
785901398981
Country of Origin
Mexico
Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
6A at 240V
DC Contact Rating - Limit Switch
6A at 28V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator (Limit Switch)
No
IP Rating
IP67
Limit Switch Style
General Purpose Limit Switch
Mounting Hole - Limit Switch
(2) 0.20 in dia
Operating Temp. Range
-4 Degrees to 221 Degrees F (-20 Degrees to 105 Degrees C)
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Body Material
Zinc
Actuator Location
Side
AC Contact Rating
6 A @ 240 V
Body Style (Limit Switch)
Miniature
Voltage Rating
240VAC/28VDC
Travel
70 Degrees
Operating Force
3.0 in-lb
Contact Form
1NO/1NC
Mounting Hole Spacing - Limit Switch
0.98 in
DC Contact Rating
6 A @ 28 V
Boot Sealed Actuator - Limit Switch
No
Number of Poles
1
Contact Form - Limit Switch
SPDT
Actuator Style
Rotary Head, No Lever
Wiring Entry
Connector
Amps
6 AC
Standards
CCC, CSA, CSA C22.2 No.14, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, UL Listed
Movement
CCW, CW
Basic Actuator Style (Limit Switch)
Rotary
Series
9007MS
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Actuator Location (Limit Switch)
Side
Electrical Connection
4-Pin M12 Male Connector
Actuator Style (Limit Switch)
Rotary, No Lever
Special Features
lateral approach, 2 directions
Certification
CSA || UL || CE
Contact Material
silver contacts
Weight
1.2 lb(US)
Contact Action
snap action
Electrical Durability
100000 cycles
Head Type
rotary head
Vibration Resistance
10 gn 75-1200 Hz)IEC 60068-2-6
Actuation Type
from left and right || CW and CCW
Shock Resistance
35 gn 9 ms IEC 60068-2-27
Min. Actuation Velocity Horizontal
130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only
Mechanical Durability
10000000 cycles
Mounting Style
Surface
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Number of Mounting Holes
2
Operating Temperature - Minimum
-40 Degrees F
Mounting Hole Horizontal Center to Center Distance
25 mm
Directional Movement
CCW/CW
Resistance Properties
Shock Resistant, Vibration Resistant
Total Travel
70 Degrees
Boot Sealed Actuator
No Boot Included
Operating Torque - Maximum
3 in-lb
Operating Temperature - Maximum
220 Degrees F
Includes Actuator
No Actuator Included
Type Of Operator
spring return without operating lever

Description

Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 6A @ 240V, DC Contact Rating - Limit Switch 6A @ 28V, Contact Form- Switches SPDT, Body Height - Limit Switch 1.75 in, Body Width - Limit Switch 1.58 in, Body Depth - Limit Switch 0.62 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P, Mounting - Limit Switch Surface
