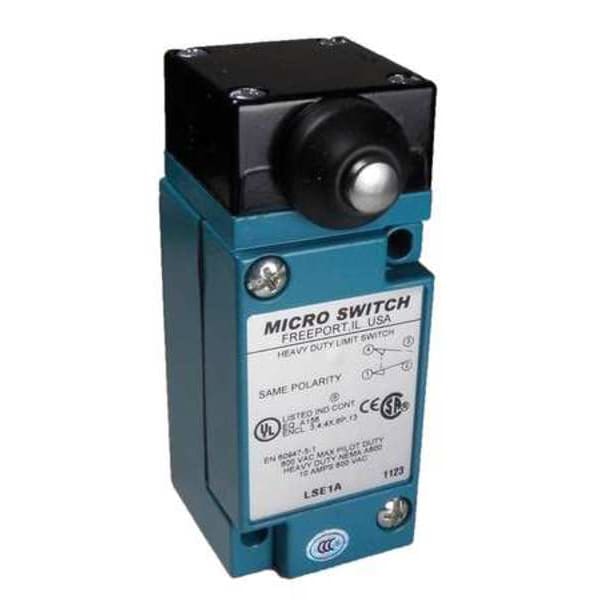

Heavy Duty Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Side

  • Mfr # LSE1A
  • Zoro # G3945471
product price:
$
287.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LSE1A
Zoro #
G3945471
UPC #
-
Country of Origin
United States

Dimensions

Depth
1.75"
Actuator Length
1.3 in
Body Width - Limit Switch
1.62 in
Body Height - Limit Switch
2.95 in
Height
4.20"
Actuator Length - Limit Switch
1.3 in
Body Depth - Limit Switch
1.75 in
Width
1.62 in
Connection Size
1/2 in. NPT
Overall Depth
2.44 in
Overall Width
1.62 in
Body Depth
1.75 in
Mounting Hole Diameter
5 mm
Body Width
1.62 in
Body Height
2.95 in
Overall Height
4.2 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 250V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Wiring Entry
1/2"-14 NPT
IP Rating
IP65, IP66, IP67
Actuator Style (Limit Switch)
Plunger
Actuator Location
Side
Series
HDLS
Voltage Rating
600V AC, 250V DC
Mounting Hole Spacing - Limit Switch
2.34 in x 1.16 in
Boot Sealed Actuator (Limit Switch)
No
Operating Force
6.0 in-lb
Contact Form - Limit Switch
1NC/1NO
Basic Actuator Style (Limit Switch)
Plunger
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Standards
CCC, CE, CSA, UKCA, UL Listed
Operating Temp. Range
10 Degrees to 200 Degrees F
Movement
Linear, Side
NEMA Rating
1, 12, 13, 3, 4, 4X, 6, 6P
Body Material
Zinc
Actuator Location (Limit Switch)
Side
Electrical Connection
Screw Terminals
Contact Form
1NO/1NC
AC Contact Rating
10 A @ 600 V
Amps
10
Actuator Style
Plunger
Limit Switch Style
Heavy Duty Limit Switch
Mounting Hole - Limit Switch
(2) 0.20 in dia
Body Style (Limit Switch)
Miniature
Boot Sealed Actuator - Limit Switch
No
DC Contact Rating
10 A @ 250 V
Stem Thread - Limit Switch
No Stem
Travel
Maximum Differential Travel 0.045 in, Maximum Pretravel 0.07 in, Minimum Over Travel 0.19 in
Number of Poles
1
Differential Travel
0.03 in
Connection Type
Threaded Entry
Head Action
Spring Return, Standard
Pre-Travel - Travel To Operate
0.1 in (2.54mm) PT
Type
Heavy Duty Plug-In Limit Switch
Electrical Rating - VAC/DC
10A 600Vac (Vdc Rated)
Head/Operator
Side Push Button
Current Rating - nominal
10A
Body Construction
Die Cast Zinc
Differential-Travel - Travel To Reset
0.025 in (0.64mm) DT
Operator Configuration
Standard
Over-Travel/Total-Travel
0.19 in (4.83mm) OT
Rating - NEMA
NEMA 4X,6P
Poles/Contacts
SPDT 1NO 1NC
Operating Temperature - min
10 deg F (-12 deg C)
Operating Temperature - max
200 deg F (94 deg C)
Body Configuration
Plug-In
Directional Movement
Linear
Action
Momentary
Pretravel
0.1 in
Resistance Properties
Corrosion Resistant
Overtravel
0.19 in
Mounting Hole Horizontal Center to Center Distance
30 mm
Operating Force - Maximum
26.7 N
Boot Sealed Actuator
No Boot Included
Operating Force - Minimum
26.7 N
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
10 Degrees F
Mounting Style
Surface
Mounting Hole Vertical Center to Center Distance
60 mm
Number of Mounting Holes
2
NEMA Enclosure Rating
1, 12, 13, 3, 4, 4X, 6, 6P
Differential Travel - Linear
0.64 mm
Pre-Travel - Linear
2.54 mm
Over Travel - Linear
0.19 in

Description

Plug-In Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 250V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.3 in, Body Height - Limit Switch 2.95 in, Body Width - Limit Switch 1.62 in, Body Depth - Limit Switch 1.75 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 3, 4, 4X, 6, 6P
