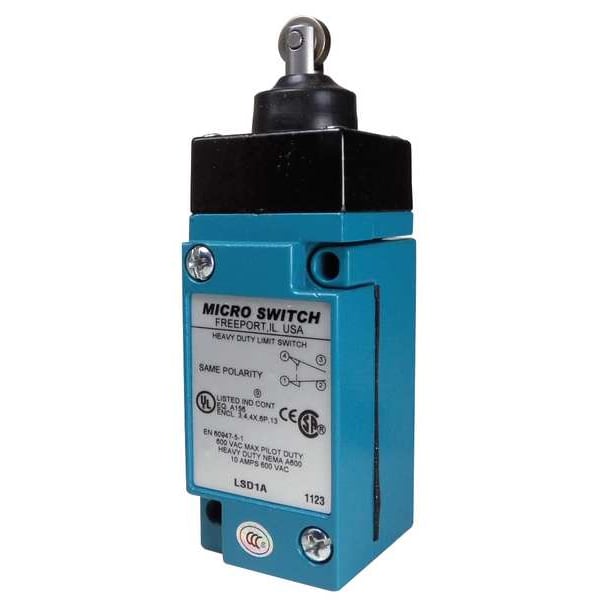

Heavy Duty Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 600V AC, Actuator Location: Top

  • Mfr # LSD1A
  • Zoro # G4100521
product price:
$
287.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LSD1A
Zoro #
G4100521
UPC #
-
Country of Origin
United States
Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 250V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
NEMA Rating
1, 12, 13, 3, 4, 4X, 6, 6P
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Series
HDLS
Operating Temp. Range
10 Degrees to 200 Degrees F
Voltage Rating
600V AC, 250V DC
Limit Switch Style
Heavy Duty Limit Switch
Basic Actuator Style (Limit Switch)
Plunger
Body Style (Limit Switch)
Miniature
Stem Thread - Limit Switch
No Stem
Amps
10
Contact Form
1NO/1NC
Operating Force
4.0 in-lb
Actuator Style
Roller-Plunger
Boot Sealed Actuator (Limit Switch)
No
Roller Material
Steel
Mounting Hole - Limit Switch
(2) 0.20 in dia
Standards
CCC, CE, CSA, UKCA, UL Listed
Actuator Location (Limit Switch)
Top
Electrical Connection
Screw Terminals
Mounting Hole Spacing - Limit Switch
2.34 in x 1.16 in
Boot Sealed Actuator - Limit Switch
No
Actuator Location
Top
DC Contact Rating
10 A @ 250 V
Movement
Linear
Number of Poles
1
Travel
Differential Travel 0.015 in, Maximum Pretravel 0.07 in, Minimum Over Travel 0.19 in
AC Contact Rating
10 A @ 600 V
Wiring Entry
1/2"-14 NPT
Contact Form - Limit Switch
1NC/1NO
Body Material
Zinc
Actuator Style (Limit Switch)
Plunger, Roller
IP Rating
IP65, IP66, IP67
Differential Travel
0.02 in
Operating Force - Minimum
17.8 N
Plunger Adjustability
Adjustable
Overtravel
0.19 in
Boot Sealed Actuator
No Boot Included
Resistance Properties
Corrosion Resistant
Operating Temperature - Maximum
250 Degrees F
Mounting Hole Vertical Center to Center Distance
60 mm
Operating Temperature - Minimum
10 Degrees F
Body Configuration
Plug-In
Directional Movement
Linear
NEMA Enclosure Rating
1, 12, 13, 3, 4, 4X, 6, 6P
Pretravel
0.07 in
Action
Momentary
Operating Force - Maximum
17.8 N
Mounting Style
Surface
Number of Mounting Holes
2
Mounting Hole Horizontal Center to Center Distance
30 mm
Pre-Travel - Linear
1.78 mm
Over Travel - Linear
0.19 in
Differential Travel - Linear
0.38 mm

Dimensions

Body Height - Limit Switch
2.95 in
Roller Width
0.19 in
Depth
1.75"
Height
4.20"
Width
1.62 in
Body Width - Limit Switch
1.62 in
Actuator Length
2.2 in
Body Depth - Limit Switch
1.75 in
Roller Dia.
0.5 in
Actuator Length - Limit Switch
2.2 in
Body Width
1.62 in
Body Depth
1.75 in
Body Height
2.95 in
Roller Diameter
0.5 in
Overall Width
1.62 in
Mounting Hole Diameter
5 mm
Overall Height
4.2 in
Overall Depth
2.44 in

Description

Plug-In Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 250V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 2.2 in, Body Height - Limit Switch 2.95 in, Body Width - Limit Switch 1.62 in, Body Depth - Limit Switch 1.75 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 3, 4, 4X, 6, 6P
