Shop HONEYWELL

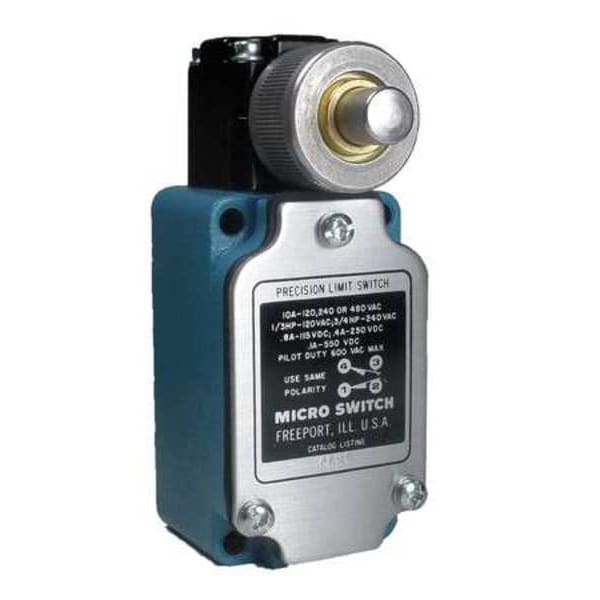

Limit Switch, Plunger, 1NC/1NO, 10A at 480V AC, Actuator Location: Side

  • Mfr # 4LS1

  • Zoro # G3961727

product price:
$
394.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 480V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4LS1
Zoro #
G3961727
UPC #
-
Country of Origin
United States
Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 480V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Number of Poles
1
Actuator Location (Limit Switch)
Side
Wiring Entry
1/2 in NPT
Travel
Differential Travel 0.040 in, Maximum Pretravel 0.109 in, Minimum Over Travel 0.250 in
Operating Temp. Range
-20 Degrees to 160 Degrees F
Amps
10
Basic Actuator Style (Limit Switch)
Plunger
Standards
CE
Boot Sealed Actuator (Limit Switch)
No
Movement
Linear
Limit Switch Style
General Purpose Limit Switch
Actuator Style
Plunger
Contact Form - Limit Switch
1NC/1NO
Stem Thread - Limit Switch
No Stem
Actuator Style (Limit Switch)
Plunger
NEMA Rating
1, 13, 3, 4, 6
Operating Force
9.0 lb
Series
LS
Boot Sealed Actuator - Limit Switch
No
Electrical Connection
Screw Terminals
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Body Style (Limit Switch)
Miniature
Mounting Hole Spacing - Limit Switch
2.31 in x 1.19 in
Actuator Location
Side
Mounting Hole - Limit Switch
(4) 0.19 in dia
Contact Form
1NO/1NC
Body Material
Metal
IP Rating
IP67
Voltage Rating
480VAC
DC Contact Rating
0.1 A @ 550 V, 0.4 A @ 230 V, 0.8 A @ 115 V
AC Contact Rating
10 A @ 120 V, 10 A @ 240 V, 10 A @ 480 V
Differential Travel
0.04 in
Overtravel
0.25 in
Pretravel
0.11 in
Mounting Style
Surface
Operating Force - Maximum
9 lbf
Number of Mounting Holes
4
Body Configuration
Non Plug-In
Operating Temperature - Minimum
-20 Degrees F
Boot Sealed Actuator
No Boot Included
Operating Temperature - Maximum
160 Degrees F
Mounting Hole Horizontal Center to Center Distance
60 mm
Mounting Hole Vertical Center to Center Distance
30 mm
NEMA Enclosure Rating
1, 13, 3, 4, 6
Directional Movement
Linear

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 480V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.6 in, Body Height - Limit Switch 2.7 in, Body Width - Limit Switch 1.19 in, Body Depth - Limit Switch 1.13 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 13, 3, 4, 6, Mounting - Limit Switch Surface
