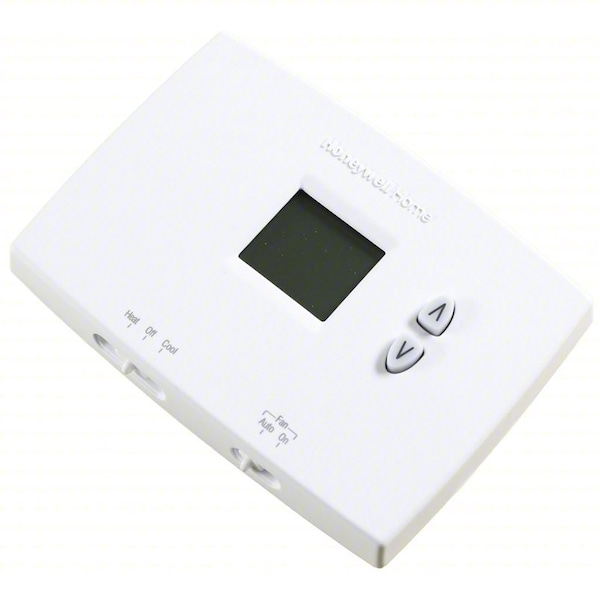

Honeywell Home Horizontal Non-Programmable Thermostats, 1 H, 1 C, Hardwired/Battery, 20/30VAC TH1110DH1003 - main

Horizontal Non-Programmable Thermostats, 1 H, 1 C, Hardwired/Battery, 20/30VAC

  • Mfr # TH1110DH1003

  • Zoro # G4287211

product price: $43.49
/ea

Key Features

Voltage
20/30VAC
Stages Heat
1
Mounting Type
Horizontal
Color
Premier White
Control Range
Cool 50 Degrees to 99 Degrees F, Heat 40 Degrees to 90 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TH1110DH1003
Zoro #
G4287211
UPC #
-
Country of Origin
Mexico

Dimensions

Height
3 7/16"
Width
1 3/16"
Depth
4 5/8 in
Overall Width
4 5/8 in
Mounting Hole Diameter
3/16 in, 7/32 in
Digit Size
Standard
Overall Depth
1 3/16 in
Overall Height
3 7/16 in

Details

Item
Horizontal Non-Programmable Thermostats
Voltage
20/30VAC
Stages Heat
1
Mounting Type
Horizontal
Color
Premier White
Control Range
Cool 50 Degrees to 99 Degrees F, Heat 40 Degrees to 90 Degrees F
System Switching
Heat-Cool-Off
Stages Cool
1
Dual Transformer Compatible
No
Power Method
Hardwired/Battery
750mV Compatible
Yes
Display
Digital
Low Battery Indicator
YES
Terminal Designations
R,RC,C,W,Y,G,O,B
Footnotes
3, 4
Battery Backup
Yes
Fan Switching
Auto-On
Batteries Included
Yes
Dehumidification Control
No
Mounting
Horizontal
Display Type
Digital
Humidification Control
No
Key Pad Lockout
No
Type
Non Programmable
Control Type
Push Button, Slide Switch
Stages
1H/1C Conventional, 1H/1C Heat Pump
Electrical Connection Type
Hardwired
Temperature Control Range
40 Degrees to 99 Degrees F
Number of Heating Stages - Heat Pump System
1
Amperage
0.02 to 1.0 A
Maximum Operating Humidity
90 %
Changeover Type
Manual
Number of Cooling Stages - Conventional System
1
Shape
Rectangle
Temperature Scale
Fahrenheit/Celsius
Millivolt Compatible
Yes
Battery Type
(2) AAA Batteries
Housing Color
White
Frequency
50 Hz, 60 Hz
Contact Rating
20 V AC, 30 V AC
Minimum Operating Temperature
32 Degrees F
Minimum Control Temperature
40 Degrees F
Operating Humidity Range
5% to 90%
Number of Heating Stages - Conventional System
1
Number of Cooling Stages - Heat Pump System
1
Includes Positive Off
Yes
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump without Aux, Millivolt
Maximum Operating Temperature
120 Degrees F
Maximum Control Temperature
99 Degrees F
System Settings
Cool-Heat-Off
Mounting Direction
Horizontal
Mounting Direction/Shape
Horizontal
Programming Capability
Not Programmable
Minimum Operating Humidity
5 %
Application
Heat or Cool
Thermostat Type
Low Voltage
Number of Zones
1
Operating Temperature Range
32 Degrees to 120 Degrees F
System/Fan Settings
Cool-Heat-Off/Auto-On
Fan Settings
Auto-On

Description

Low Voltage Thermostat, Heat or Cool, Manual, Compatible System Type Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump without Aux, Millivolt, Push Button, Slide Switch, Dehumidification Control No, Digit Size Standard, Digital, Dual Transformer Compatible No, Fan Settings Auto-On, Humidification Control No, Includes Positive Off Yes, Minimum Control Temperature 40 Degrees F, Maximum Control Temperature 99 Degrees F, Key Features Dual Powered, Key Pad Lockout No
