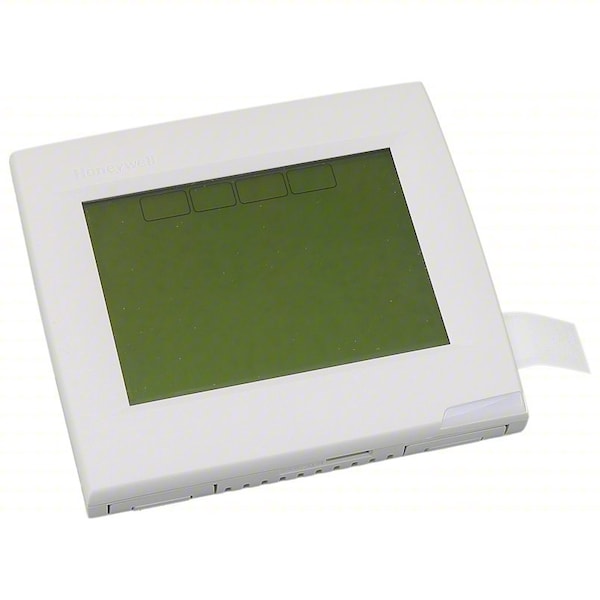

Honeywell Home Programmable Thermostat, 7 or Nonprogrammable Programs, 1 H, 1 C, Hardwired/Battery, 18/30VAC TH8110R1008 - main

Programmable Thermostat, 7 or Nonprogrammable Programs, 1 H, 1 C, Hardwired/Battery, 18/30VAC

  • Mfr # TH8110R1008

  • Zoro # G8602124

product price: $247.99
/ea
Free Shipping & Returns

Key Features

Voltage
18/30VAC
Stages Heat
1
Mounting Type
Horizontal
Color
Arctic White
Control Range
Cool 50 Degrees to 99 Degrees F, Heat 40 Degrees to 90 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TH8110R1008
Zoro #
G8602124
UPC #
-
Country of Origin
Mexico

Dimensions

Height
4 5/8"
Width
4 15/16"
Depth
1 1/8 in
Display Size
10 sq in
Overall Depth
1 1/8 in
Digit Size
Standard
Screen Height
10 in
Overall Height
4 5/8 in
Overall Width
4 15/16 in
Screen Width
10 in

Details

Item
Programmable Thermostat
Voltage
18/30VAC
Stages Heat
1
Mounting Type
Horizontal
Color
Arctic White
Control Range
Cool 50 Degrees to 99 Degrees F, Heat 40 Degrees to 90 Degrees F
System Switching
Auto-Heat-Cool-Off
Stages Cool
1
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery
750mV Compatible
Yes
Programs per Week
7 or Nonprogrammable
Temperature Limiting
Yes
WiFi Capability
No
Display Type
Digital
Programmable Fan
No
Automatic Changeover
Yes
Includes
Mfr. No. TH8110R1008 and (2) AA Thermostat Batteries
Temporary Temperature Hold
Yes
Temporary Program Override
Yes
Battery Backup
No
Features
Smart Schedule, Patented Interview Based Programming and Installer Setup, RedLINK(TM) Wireless Communication, Plain Language Setup, Alerts and User Interactions Log, Customizable Service Reminders, MicroSD Port, Dual Powered - Battery or Hardwired (C Wire), Precise Temperature Control ( +/-1 Degrees F), Multiple Staging Options
Remote Sensing Capability
Yes
Dehumidification Control
Yes
Terminal Designations
R, RC, C, W-O/B, Y, G, K, S1 S1
Fan Switching
Auto-On-Circulate-Follow Schedule
Batteries Included
Yes
Green Certification or Other Recognition
ENERGY STAR
Filter Indicator
Yes
Low Battery Indicator
Yes
Temp. Settings per Day
4
Display Color
Blue
Key Pad Lockout
Yes
Humidification Control
Yes
Standards
Energy Star
Control Type
Touch Screen
Stages
1H/1C Conventional, 1H/1C Heat Pump
Occupancy Sensor
Compatible with Occupancy Sensor
Maximum Operating Temperature
120 Degrees F
Application
Heat and Cool
Minimum Control Temperature
40 Degrees F
Temperature settings per day
4
Temperature Scale
Fahrenheit/Celsius
Temperature Sensitivity
+/-1.5 Degrees F
Temperature Control Range
40 Degrees to 99 Degrees F
Operating Humidity Range
5% to 90% RH
Maximum Operating Humidity
90 %
Shape
Rectangle
Includes Positive Off
Yes
Fan Settings
Auto-Circulate-On
Differential Type
Adjustable
Number of Cooling Stages - Heat Pump System
1
Minimum Operating Temperature
32 Degrees F
Mounting Direction
Horizontal
Maximum Control Temperature
99 Degrees F
Compatible System Type
Heat Pump with Aux, Millivolt
Number of Zones
1
Wireless System Compatibility
RedLink
Filter Change Reminder
Yes
Contact Rating
18/30V AC
Temperature Differential
1 Degrees F
Number of Heating Stages - Conventional System
1
Includes Batteries
Yes
Housing Color
White
Thermostat Type
Low Voltage
Number of Heating Stages - Heat Pump System
1
Sensor Location
Remote
Mounting Direction/Shape
Horizontal
Application/Stages
Heat and Cool; 1H/1C Conventional, 1H/1C Heat Pump
Temperature Readout
Yes
Number of Cooling Stages - Conventional System
1
System Settings
Auto-Cool-Heat-Off
Electrical Connection Type
Hardwired
Programming Capability
7 Day
Millivolt Compatible
Yes
Operating Temperature Range
32 Degrees to 120 Degrees F
Minimum Operating Humidity
5 %
Frequency
50 Hz, 60 Hz
System/Fan Settings
Auto-Cool-Heat-Off/Auto-Circulate-Follow Schedule-On
Changeover Type
Automatic and Manual

Description

Low Voltage Thermostat, Stages Heat 1, Stages Cool 1, Temp. Settings per Day 4, Programs per Week 7 or Nonprogrammable, Terminal Designations C, G, K, R, RC, S1 S1, W-O/B, Y, WiFi Capability No, System Switching Heat-Off-Cool-Auto, Fan Switching Auto-On-Circulate-Follow Schedule, Display Size 10 sq in, Display Type Digital, Display Color Blue, Key Pad Lockout Yes, Programmable Fan No, Automatic Changeover Yes, Humidification Control Yes, Dehumidification Control Yes

Restrictions

Hazardous material
