  6. Wireless Thermostat, 3 Heat Pump or 2 Conventional H, 2 C, Battery, 20/30VAC

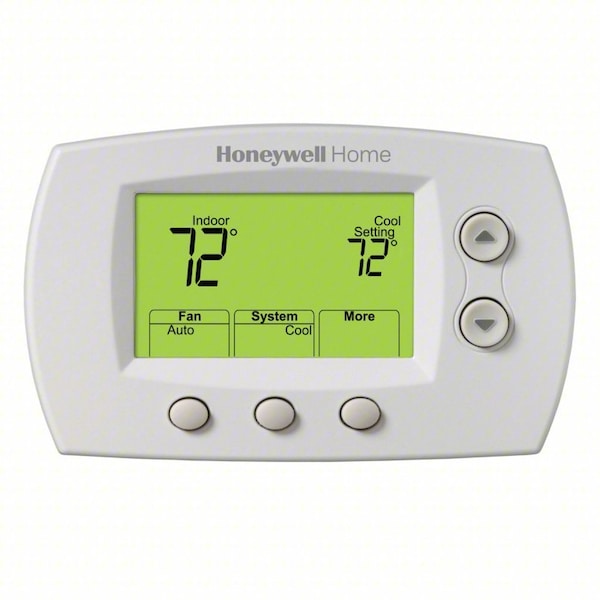

Honeywell Home Wireless Thermostat, 3 Heat Pump or 2 Conventional H, 2 C, Battery, 20/30VAC YTH5320R1000 - main
Shop HONEYWELL HOME

Wireless Thermostat, 3 Heat Pump or 2 Conventional H, 2 C, Battery, 20/30VAC

  • Mfr # YTH5320R1000

  • Zoro # G1445236

product price:  $346.88
/ea
Free Shipping & Returns

Key Features

Voltage
20/30VAC
Stages Heat
3 Heat Pump or 2 Conventional
Color
White
Control Range
32 Degrees to 120 Degrees F
System Switching
Auto-Heat-Cool-Off-Emergency
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YTH5320R1000
Zoro #
G1445236
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Width
4 3/8 in
Overall Height
5 9/16 in
Digit Size
Standard
Overall Depth
1 1/4 in

Details

Item
Wireless Thermostat
Voltage
20/30VAC
Stages Heat
3 Heat Pump or 2 Conventional
Color
White
Control Range
32 Degrees to 120 Degrees F
System Switching
Auto-Heat-Cool-Off-Emergency
Stages Cool
2
Dual Transformer Compatible
No
Power Method
Battery
Low Battery Indicator
Yes
Key Pad Lockout
No
Includes
C7735A1000 Return Air Sensor, TH5320R1002 Wireless FocusPRO, THM5320R1000 Equipment Interface Module
Battery Backup
Yes
Footnotes
1, 3
Features
Zoning Panel and Return Air Sensor is Hardwired to HVAC Equipment, Wireless Adaptor Measures 5-9/16 in H x 4-3/8 in W x 1-1/4 in D
Display Type
Digital
Terminal Designations
A, B, C, D, G, L, R, RAS, RC, RH, W-O/B, W2-AUX/E, Y, Y2
Programmable Fan
No
Humidification Control
No
Fan Switching
Auto-on
WiFi Capability
No
Remote Sensing Capability
Yes
Temperature Limiting
Yes
Dehumidification Control
No
Temporary Temperature Hold
Yes
Control Type
Push Button
Type
Wireless Nonprogrammable FocusPRO(R) System Kit, Redlink(TM)-Enabled
Stages
2H/2C Conventional, 3H/2C Heat Pump
Sensor Type
Outdoor Air Sensor
Application
Heat and Cool
Thermostat Type
Low Voltage
Mounting Direction/Shape
Horizontal
System Settings
Auto-Cool-Emergency Heat-Heat-Off
Includes Positive Off
Yes
Changeover Type
Automatic and Manual
Mounting Direction
Horizontal
Temperature Scale
Fahrenheit
Frequency
50 Hz, 60 Hz
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Hydronic Systems, Millivolt
Backlit Type
Press Button
Number of Heating Stages - Heat Pump System
3
Number of Cooling Stages - Heat Pump System
2
Sensor Location
Remote
Contact Rating
20 V AC, 30 V AC
Number of Heating Stages - Conventional System
2
Temperature Control Range
32 Degrees to 120 Degrees F
Maximum Control Temperature
120 Degrees F
Number of Zones
1
Temperature Differential
1 Degrees F
Electrical Connection Type
Hardwired
Shape
Rectangle
System/Fan Settings
Auto-Cool-Emergency Heat-Heat-Off/Auto
Number of Cooling Stages - Conventional System
2
Fan Settings
Auto
Housing Color
White
Minimum Control Temperature
32 Degrees F
Programming Capability
Not Programmable

Description

Wireless Thermostat, Heat and Cool, Automatic and Manual, Compatible System Type Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Hydronic Systems, Millivolt, Push Button, Dehumidification Control No, Digit Size Standard, Digital, Dual Transformer Compatible No, Fan Settings Auto, Humidification Control No, Includes Positive Off Yes, Minimum Control Temperature 32 Degrees F, Maximum Control Temperature 120 Degrees F

Restrictions

This item has been restricted from sale in the following states: CO
