Gas Pressure Regulator & Solenoid Valve, 1/2" DN15, 24V DC, IP65

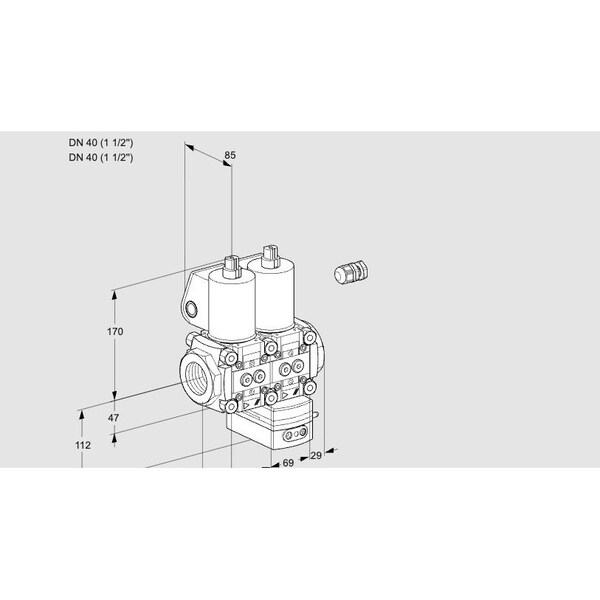

The HONEYWELL KROMSCHRODER VLV,DBL SOLND W RTO REG,VCG2E40R/40R05NG is a solenoid valve intended for use in applications involving the regulation and control of gas pressure. It features integrated regulation and quick operation, making it suitable for use with gas, air, and biologically produced methane as specified by manufacturer guidelines. This unit combines a Class A pressure regulator (EN 88) with a Class A solenoid valve (EN 161), includes electrical actuation capability and a pilot lamp that indicates operational status.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet connection: DN 15 (1/2") Rp internal thread
• Outlet pressure range: 35–100 mbar
• Electrical connection: M20 cable gland; mains voltage 24 V DC
• Quick opening and closing action
• IP65 rated enclosure for ingress protection
• FM and SA approved; EU certified
• No inlet flange; size 1 configuration
• Valve seat reduced; right-side accessories include a pressure switch (30–110 mbar) with test point, left side includes two screw plugs
